Asphalt Recycling Plant
Applications: Highway Rehabilitation | Municipal RAP Recycling | Road Reconstruction | Eco-Paving Projects
Features: High RAP Addition Ratio | Lower Material Costs | Anti-Sticking Dryer Drum | Eco-Friendly Low Carbon
Asphalt Recycling Plant Models

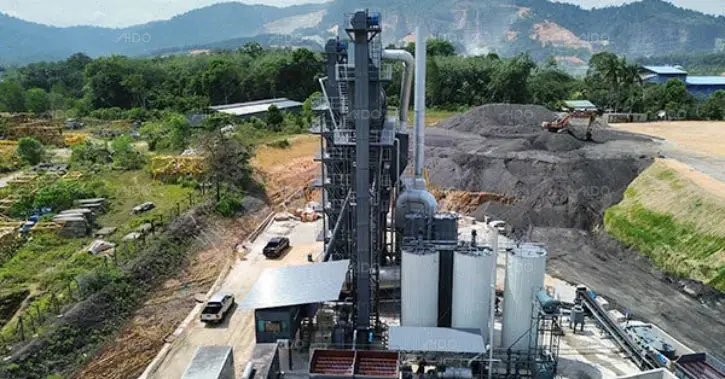

AZS1000 Asphalt Recycling Plant
Eco-friendly RAP recycling plant for medium road maintenance.
Capacity: 80 TPH

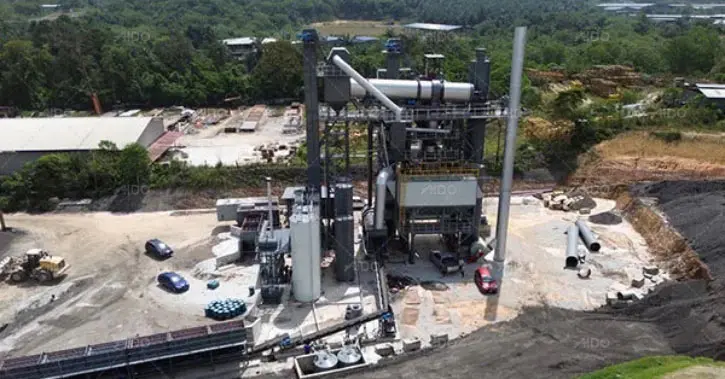

AZS1500 Asphalt Recycling Plant
High-capacity RAP recycling system for highway reconstruction.
Capacity: 120 TPH
Technical Parameters
| Parameter | AZS1000 | AZS1500 |
|---|---|---|
| Rated production capacity (t/h) | 80 | 120 |
| Feeder belt width (mm) | 600 | 600 |
| Number of cold material bins | 2 | 2 |
| Volume of cold material bin (m³) | 10 | 10 |
| Elevator capacity (t/h) | 100 | 140 |
| Drying drum specifications (diameter × length) (mm) | ϕ 2050×7200 | ϕ 2220×9500 |
| Weighing hopper volume (t) | 1 | 1.5 |
| Note for Rated Production Capacity: | The rated production capacity is defined under standard operating conditions, which refer to: Ambient temperature: 20°C Standard atmospheric pressure RAP material: crushed granular material or milled material Average moisture content: 5% Heating temperature of recycled material: 120°C |
|
Asphalt Recycling Plant Projects

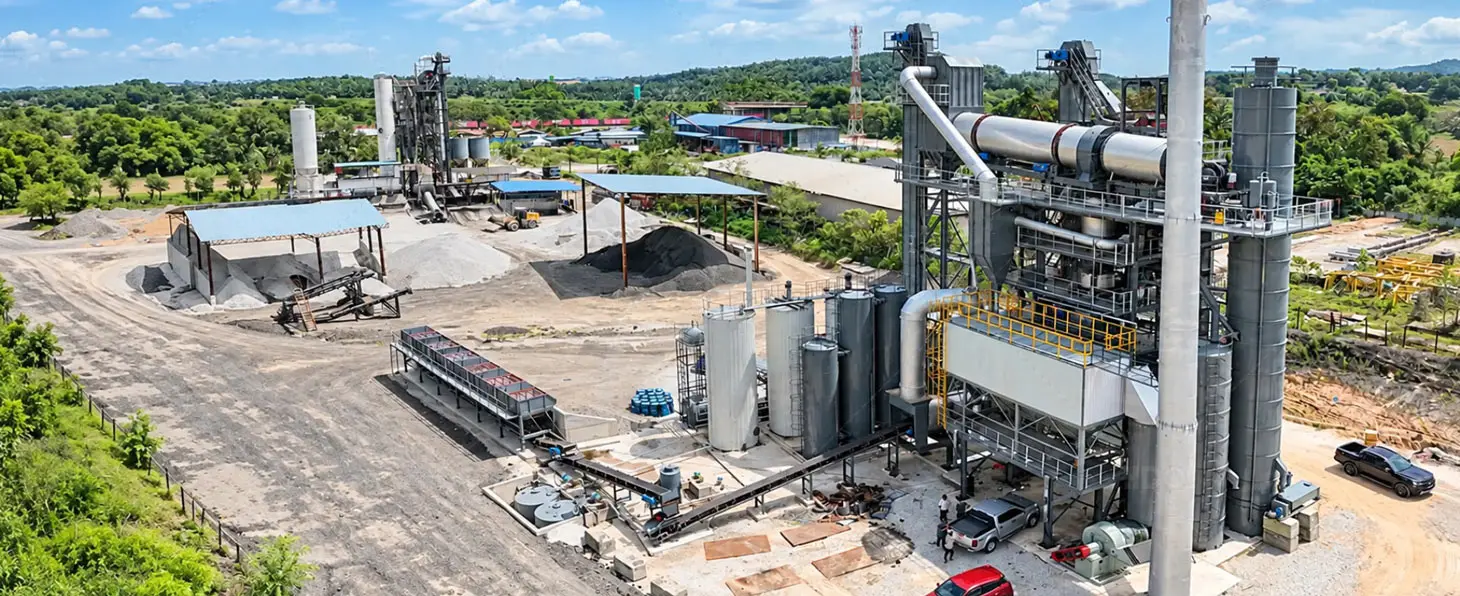

Asphalt Recycling Plant in Thailand
Equipment: AZS1500
Application: Highway Rehabilitation & RAP Recycling
To support sustainable road reconstruction in Thailand, our engineering team helped set up this 120 TPH recycling system, efficiently processing reclaimed asphalt pavement to substantially reduce raw material costs and environmental impact.
Key Features of Asphalt Recycling Plants
Up to 60% RAP Addition Ratio
Supports high reclaimed asphalt incorporation, directly cutting virgin bitumen and raw aggregate consumption by up to 30%-50%.
Anti-Aging RAP Drying Technology
Uses gentle indirect heating and soft-flame technology to prevent bitumen oxidation and burn-off while rapidly removing moisture from RAP.
Anti-Sticking & Anti-Clogging Drum
Specially engineered non-stick internal flighting and self-cleaning flights eliminate sticky RAP buildup inside the recycling drum.
Synchronized RAP & Agent Dosing
High-precision dynamic scales sync RAP feeding with recycling agents (rejuvenators) and virgin bitumen for optimal mix performance.
Blue Smoke & Asphalt Fume Incineration
Directs volatile asphalt fumes and organic gases back into the burner for high-temperature incineration, ensuring zero toxic emissions.
Dual-Mode Flexible Operation
Allows instant switching between 100% virgin hot mix and RAP recycled asphalt mix production without shutting down the main plant.
Comprehensive Service & Support
Spare Parts Supply
A comprehensive spare parts inventory covers mixer wear liners, burner nozzles, filter bags, drying drum flights, valves, and other essential components.
Expert Technical Support
Our experienced technical team supports asphalt plant design, installation, troubleshooting, and maintenance, with online and on-site assistance.
24/7 After-Sales Service
Our after-sales team is available 24/7 to answer questions and provide online or on-site support throughout your equipment’s service life.
