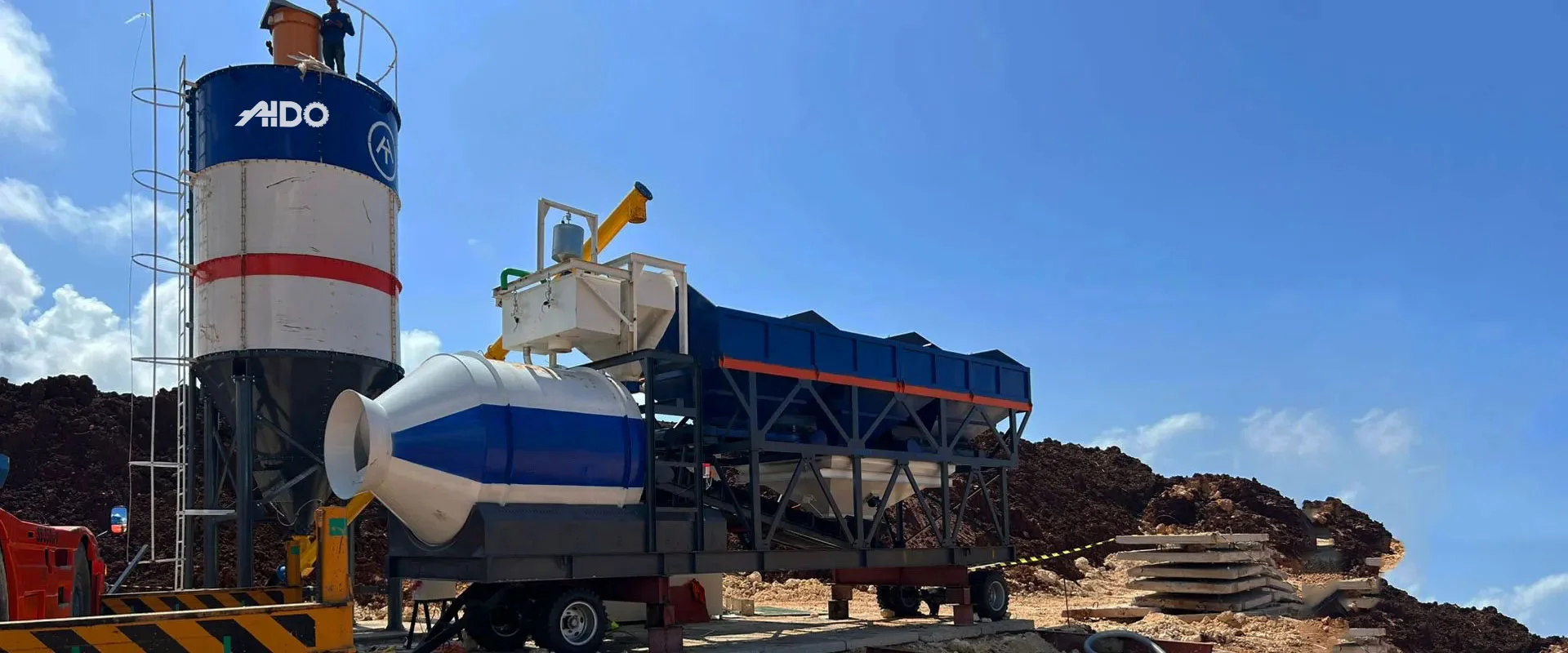

Drum Type Concrete Batching Plant
Rotating Drum Mixing for Cost-Effective Concrete Production
Production Capacity: 40-60m³/h
The AJZY-Series drum-type mobile concrete batching plant features a rotating drum mixer and an integrated mobile design for flexible concrete production at small and medium-sized construction sites. It is suitable for producing plastic and semi-dry concrete, including common C15–C30 applications, depending on the mix design and project requirements. Its simple mixing mechanism, quick setup, and compact footprint make it a practical choice for rural housing, village roads, small infrastructure, and minor water-conservancy projects.
Technical Parameters
| Model | AJZY40 | AJZY60 | |
|---|---|---|---|
| Theoretical Production Capacity (m³/h) | 40 | 60 | |
| Batching Machine | Drum Mixer | JZM1000 | JZM1500 |
| Motor Power (kw) | 11×2 | 15×2 | |
| Mixing cycle (s) | 90 | 90 | |
| Discharge Height (m) | 1.5 | 1.5 | |
| Batching Machine | PLD1200 | PLD1600 | |
| Storage Capacity (m³) | 4×2/3 | 6×2/3 | |
| Motor Power (kw) | 4×3 | 4×3 | |
| Sensor (kg) | 2000×3 | 2000×3 | |
| Cylinder | 100×250 | 100×250 | |
| Belt (mm) | 600mm | 600mm | |
| Feeding Height (mm) | 3200 | 3200 | |
| Cement Weighing System Accuracy | Weighing Accuracy | ±1% | ±1% |
| Water Weighing System Accuracy | Weighing Accuracy | ±1% | ±1% |
| Water Pump Power (kw) | 3 | 3 | |
| Additive Weighing System Accuracy | Weighing Accuracy | ±1% | ±1% |
| Bump Power (kw) | 1.1 | 1.1 | |
| Chassis | Dimension (mm) | 8410×2000×780 | 11100×2000×780 |
| Tire Size (mm) | 1000 | 1000 | |
| Control System | Electronic Components | ZHENG TAI | ZHENG TAI |
| Control | PLY1000 semi-automatic control system | PLY1000 semi-automatic control system |
Drum Type Mobile Batching Plant Projects

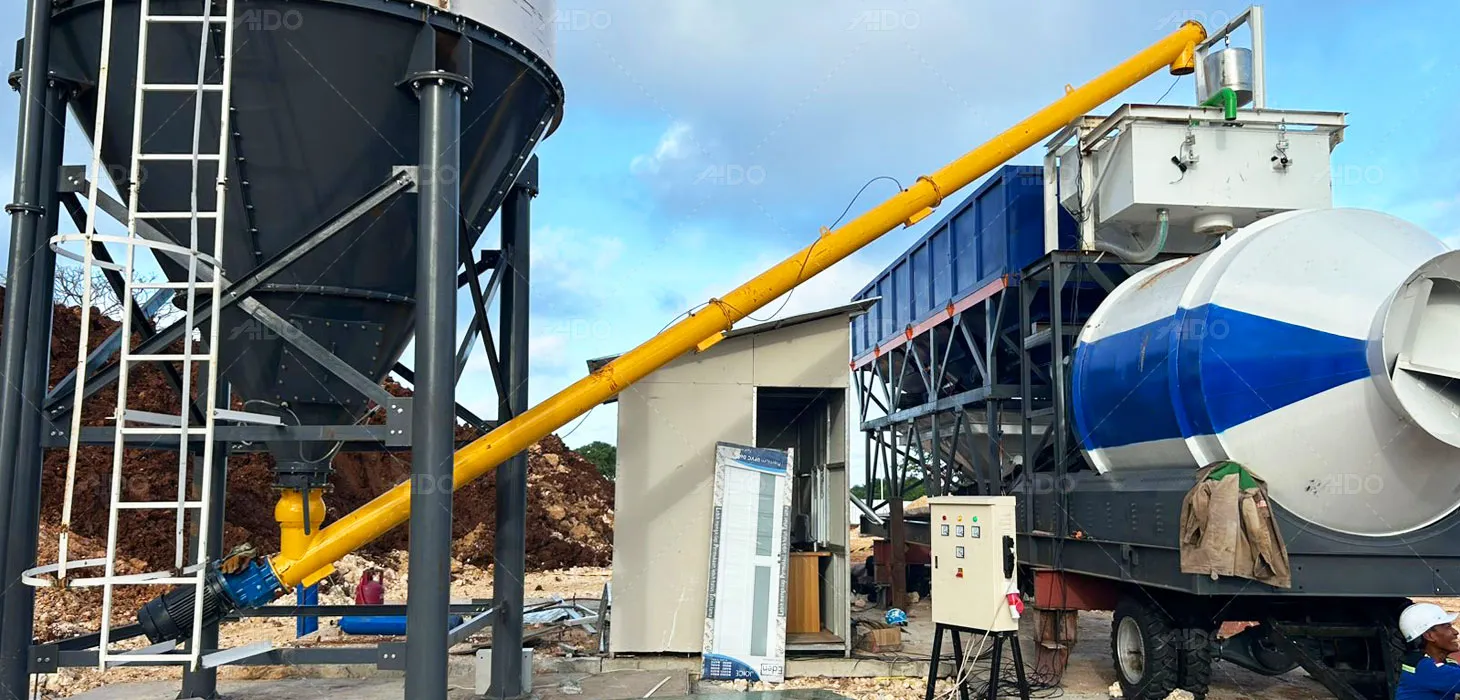

Drum-Type Concrete Batching Plant in Indonesia
Equipment: AJZY50
Application: Warehouse Construction
A complete solution was provided, including the AJZY50 drum-type concrete batching plant, a loader, and an excavator. Local installation specialists and Chinese engineers handled installation, commissioning, and operator training, helping the customer start in-house concrete production. The plant is now operating successfully.
Key Features of Drum Type Batching Plants
Drum Mixing for Plastic and Semi-Dry Concrete
The rotating drum lifts materials with internal blades and allows them to tumble under gravity, providing a straightforward mixing process suitable for plastic and semi-dry concrete.
Integrated Design for Quick Deployment
The mixing drum, batching system, and controls are integrated into a mobile frame or trailer chassis for convenient transportation. Under suitable site conditions, setup and commissioning can typically be completed within 1–3 hours.
Compact Footprint for Flexible Site Placement
With a typical footprint of approximately 100–300 m², the AJZY-Series can fit rural courtyards, open fields, and space-constrained construction sites. Positioning the plant near the point of use can help reduce concrete transportation distance and the risk of segregation.
Simple Operation and Easy Maintenance
Depending on the configuration, manual, semi-automatic, or PLC-based controls may be available. The straightforward drum-mixing mechanism simplifies routine maintenance, which mainly focuses on drum blades, liners, feeding and weighing systems, and transmission components.
Energy-Efficient Mixing for Suitable Applications
Gravity-assisted drum mixing can reduce mixing power requirements compared with some forced-mixing configurations, depending on the model and operating conditions. This makes the AJZY-Series suitable for projects prioritizing straightforward operation and economical production.
Ideal for Small and Medium-Sized Projects
Suitable for rural housing, village roads, small infrastructure works, minor water-conservancy projects, and other applications requiring flexible concrete production.
