Mobile Asphalt Drum Mix Plant
Applications: Remote Road Construction | Patching & Maintenance | Rural Paving | Multi-Site Relocation
Features: Wheel-Mounted Mobility | Quick Assembly | Continuous Mixing | Cost-Effective
Mobile Asphalt Drum Mix Plant Models

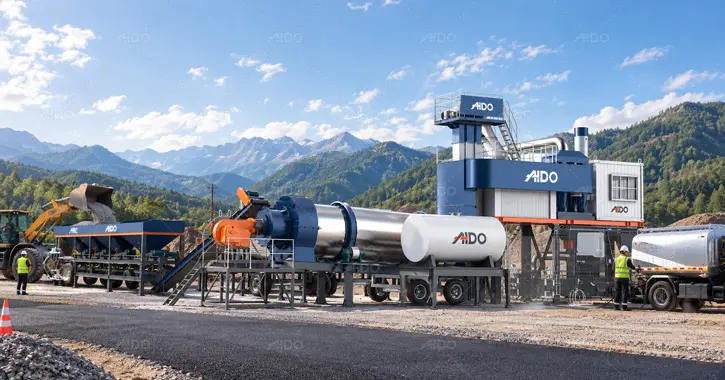

ALYT80 Mobile Drum Plant
High-mobility drum plant for frequent site relocation.
Capacity: 80 TPH

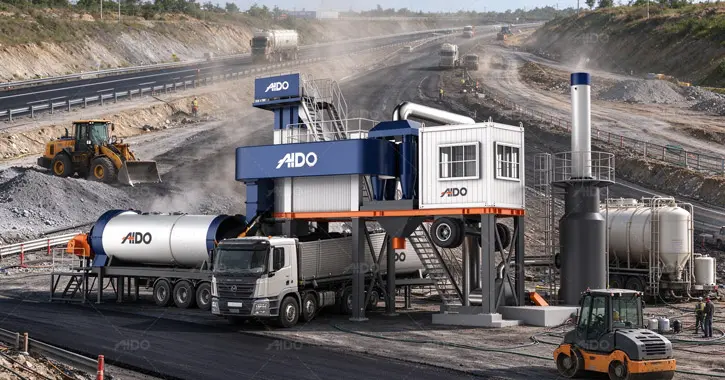

ALYT100 Mobile Drum Plant
Large trailer-mounted drum plant for multi-site paving.
Capacity: 100 TPH

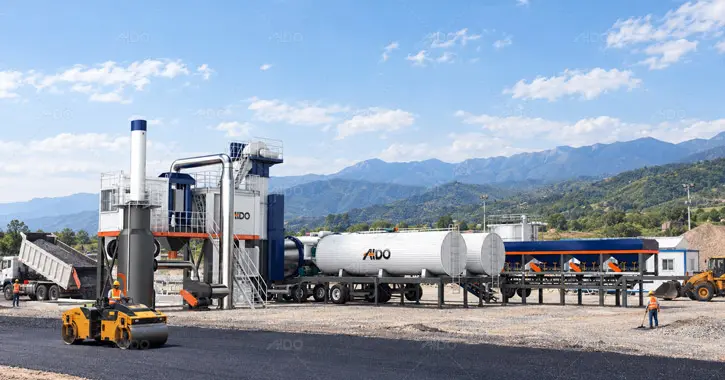

ALYT120 Mobile Drum Plant
Heavy-duty mobile drum plant for fast continuous output.
Capacity: 120 TPH
Technical Parameters
| Model | ALYT20 | ALYT40 | ALYT60 | ALYT80 | ALYT100 | ALYT120 |
|---|---|---|---|---|---|---|
| Output | 20t/h | 45t/h | 60t/h | 80t/h | 100t/h | 120t/h |
| Power | 34kw | 65kw | 105kw | 135kw | 170kw | 200KW |
| Cold Aggregate Feeding System | 3.5m³×1 | 4m³×4 | 4m³×4 | 6.5m³×4 | 6.5m³×4 | 6.5m³×4 |
| Finihsed Asphalt Storage Bin | 2m³ | 2.5m³ | 4.5m³ | 5m³ | 7m³ | 7m³ |
| Asphalt Temperature | 120-180℃ | 120-180℃ | 120-180℃ | 120-180℃ | 120-180℃ | 120-180℃ |
| Fuel Consumption(Fuel Oil) | 5-7.5kg/t | 5-7.5kg/t | 5-7.5kg/t | 5-7.5kg/t | 5-7.5kg/t | 5-7.5kg/t |
| Fuel Consumption(Burning Coal) | 13-15kg/t | 13-15kg/t | 13-15kg/t | 13-15kg/t | 13-15kg/t | 13-15kg/t |
| Asphalt Tank | 10m³ | 20m³ | 30m³ | 30m³ | 35m³ | 35m³ |
| Option | bag dust collector / water dust collector | |||||
| Whole Plant Option | whole mobile / semi-mobile / fixed | |||||
Mobile Asphalt Drum Mix Plant Projects
Mobile Asphalt Drum Mix Plant in Brasil
Equipment: ALYT60
Application: Highway & Road Construction
Meeting strict standards, our technical team helped a first-time plant investor achieve successful setup and commissioning, with actual production exceeding expected output by 10 TPH.

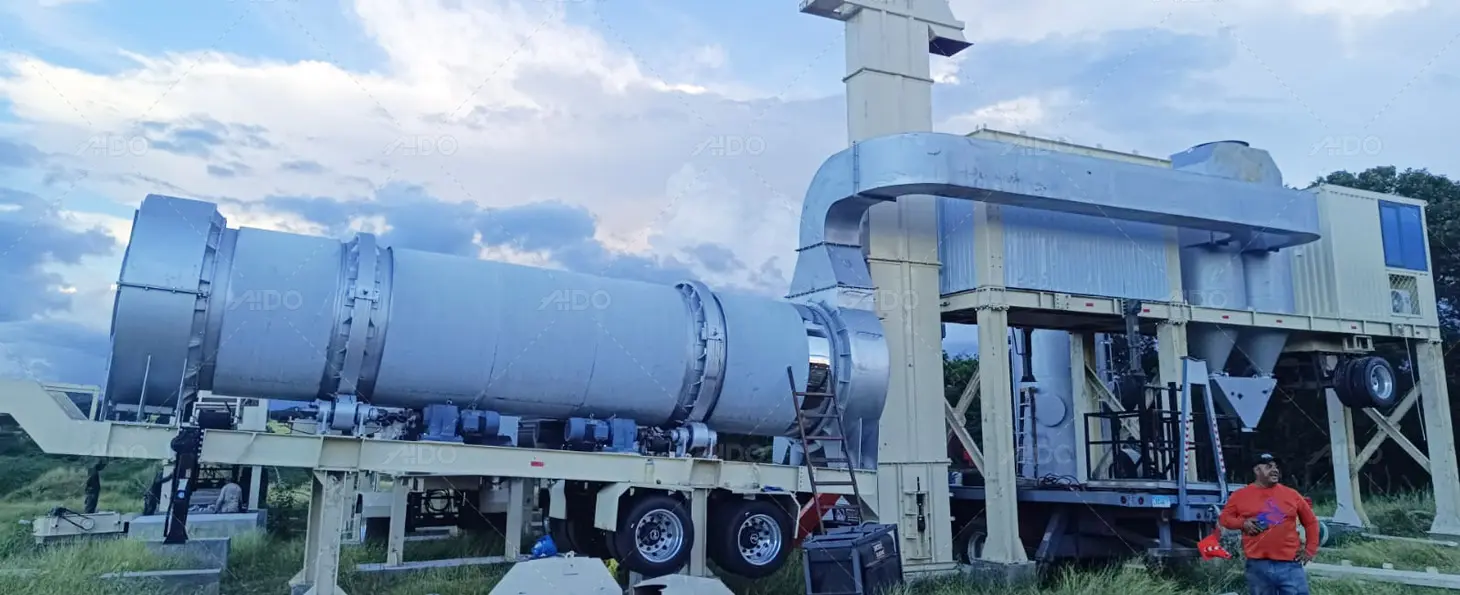

Mobile Asphalt Drum Mix Plant in Dominican Republic
Equipment: ALYT120
Application: Santo Domingo Road Infrastructure
To assist a zero-experience client, our engineers delivered full on-site guidance and operational training, ensuring seamless setup and efficient self-supplied hot mix production.
Key Features of Mobile Asphalt Drum Mix Plants

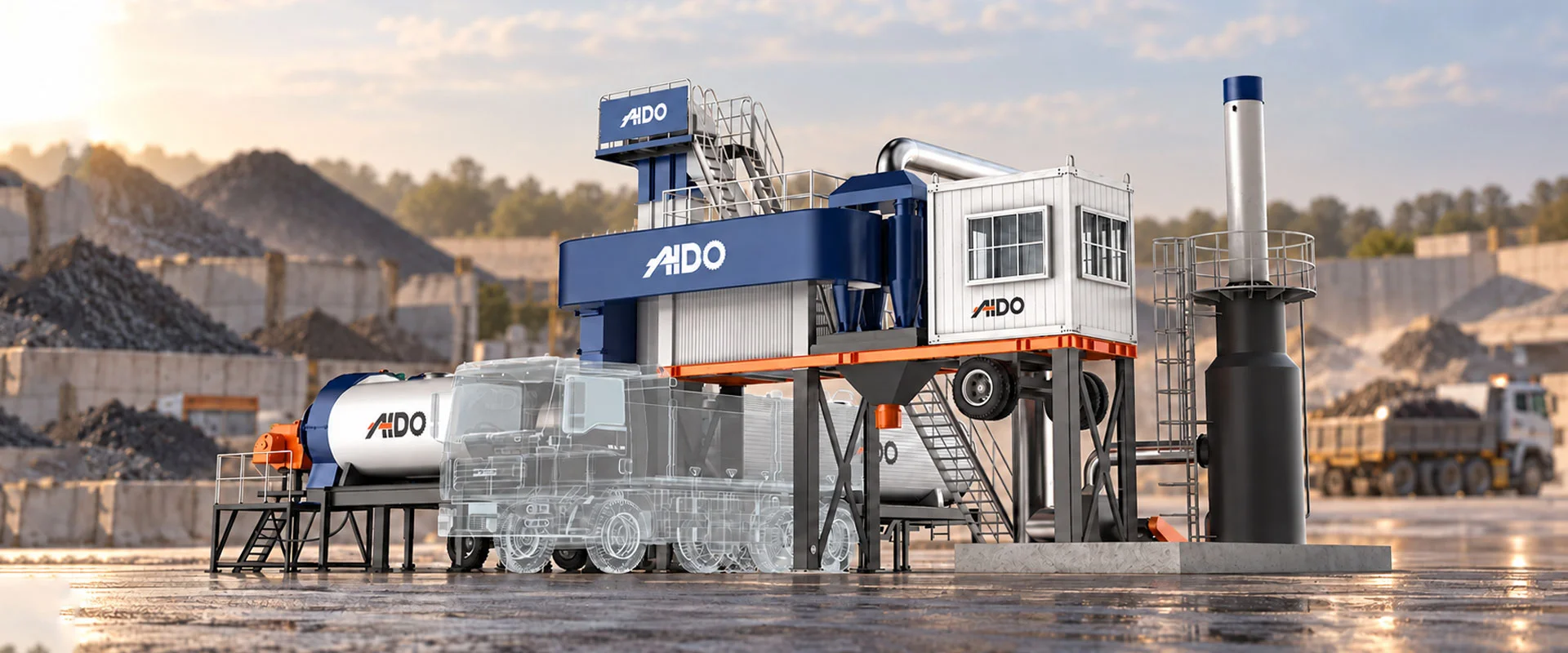

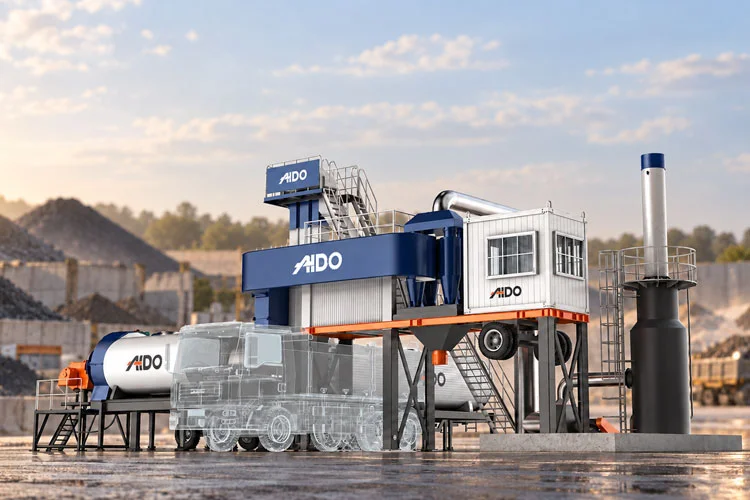

Wheel-Mounted Chassis Design
Built on heavy-duty mobile trailers with kingpins and towable axles for effortless road transportation and quick site relocation.
Rapid Setup & Modular Layout
Pre-wired pin-connected modular components eliminate complex concrete foundation work, significantly shortening installation time.
Continuous Drying & Mixing Drum
Integrates aggregate heating and asphalt coating in a single continuous drum, delivering high thermal efficiency and continuous asphalt output.
Precise Continuous Metering
Frequency-controlled cold feed hoppers paired with high-precision liquid asphalt pumps guarantee exact binder-to-aggregate proportions continuously.
Mobile Eco Dust Collection
Trailer-integrated dust filtering system combines cyclone separation with optional bag filters to ensure clean emissions at remote sites.
Centralized Portable PLC Cabin
Mobile air-conditioned control house features touch-screen PLC management, real-time diagnostic tools, and quick-plug electrical harnesses.
Comprehensive Service & Support
Spare Parts Supply
A comprehensive spare parts inventory covers mixer wear liners, burner nozzles, filter bags, drying drum flights, valves, and other essential components.
Expert Technical Support
Our experienced technical team supports asphalt plant design, installation, troubleshooting, and maintenance, with online and on-site assistance.
24/7 After-Sales Service
Our after-sales team is available 24/7 to answer questions and provide online or on-site support throughout your equipment’s service life.
Find the Right Asphalt Mixing Plant
Looking for a suitable asphalt mixing plant for your project? Tell us your required production capacity, application, and site conditions. Our team will help you explore suitable options and find the right solution for your needs.
