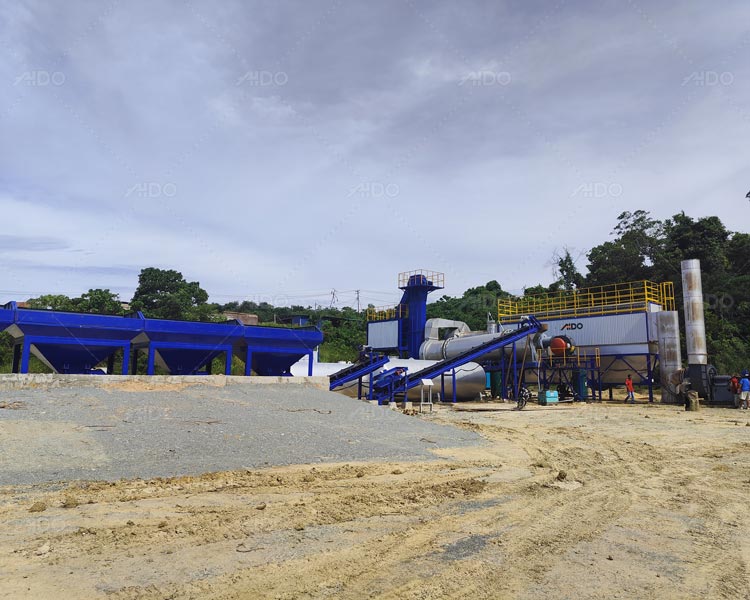

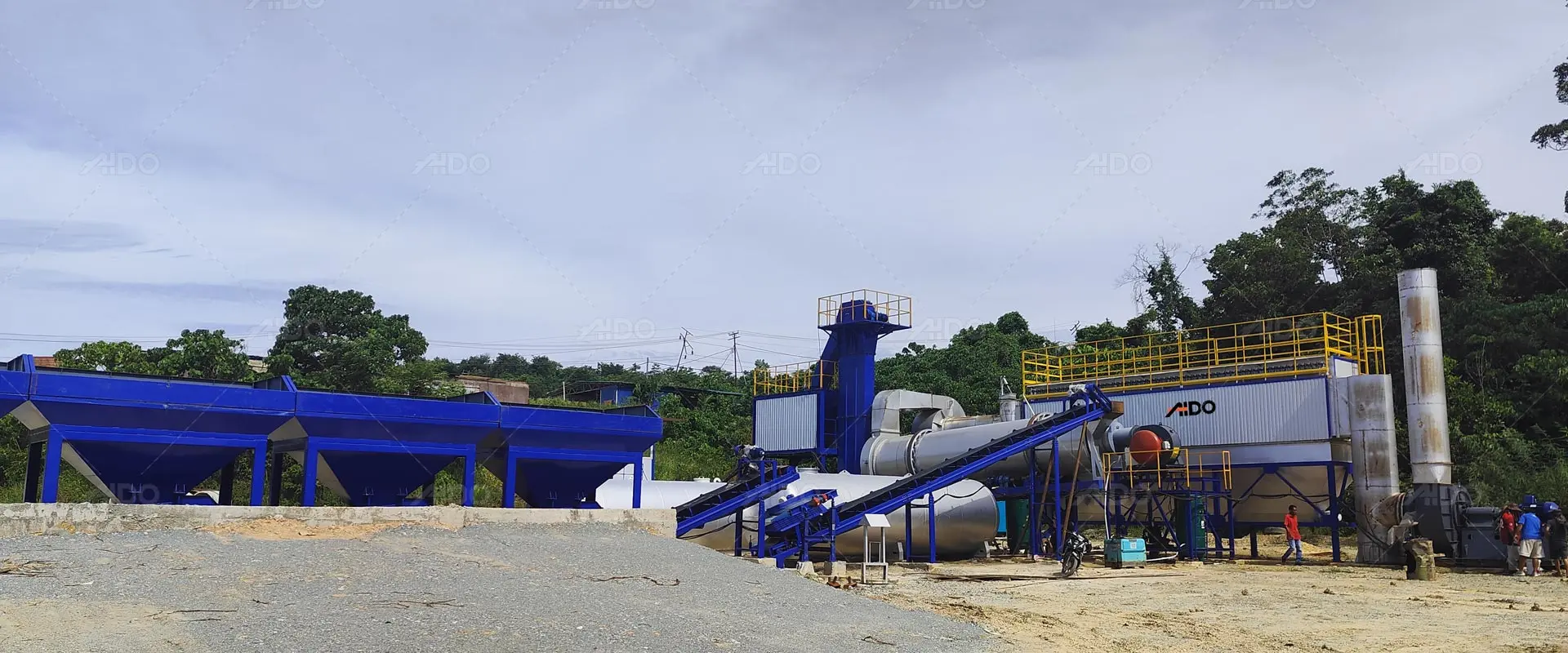

Stationary Asphalt Drum Mix Plant
Applications: Secondary Highways | Rural Road Projects | Municipal Maintenance | Continuous Production
Features: Continuous Mixing | Low Capital Investment | Simple Structure | Fuel Efficient
Stationary Asphalt Drum Mix Plant Models

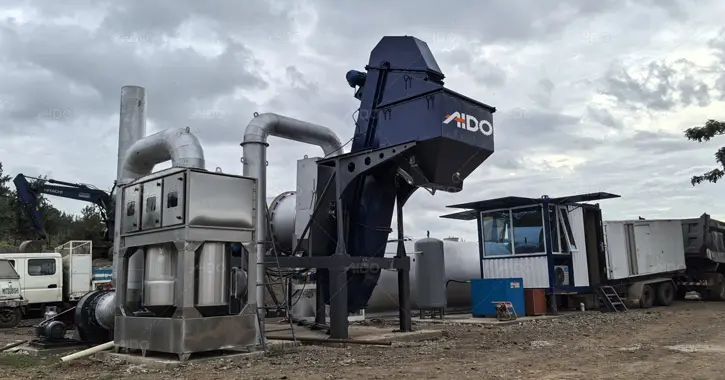

ALT40 Stationary Drum Plant
Compact drum plant for rural road construction.
Capacity: 40 TPH

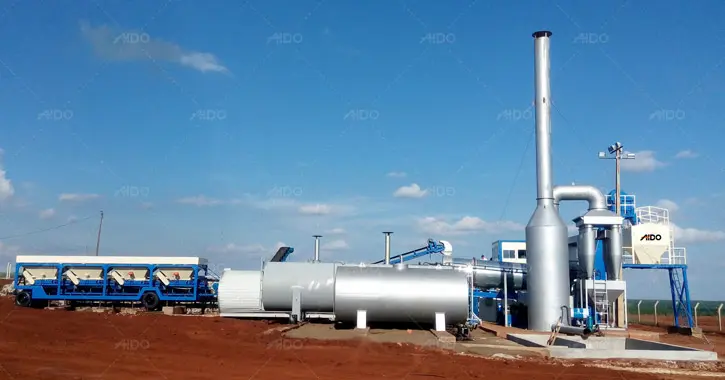

ALT60 Stationary Drum Plant
Economical model with steady continuous output.
Capacity: 60 TPH

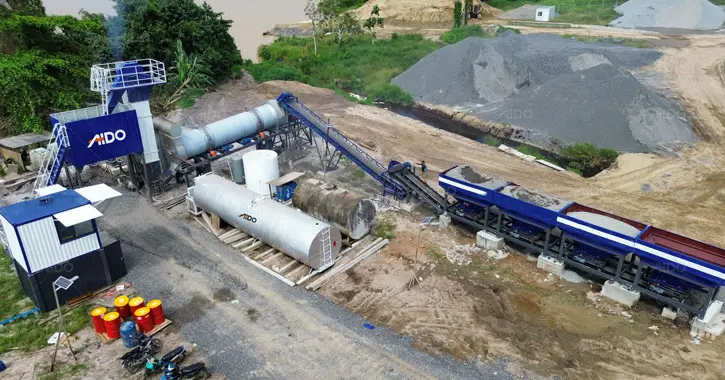

ALT80 Stationary Drum Plant
Popular continuous mixing plant for secondary highways.
Capacity: 80 TPH

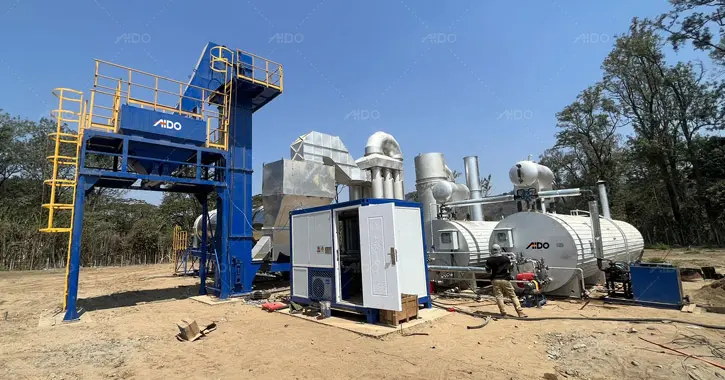

ALT120 Stationary Drum Plant
Heavy-duty drum plant for large road networks.
Capacity: 120 TPH
Technical Parameters
| Courts Models | ALT20 | ALT40 | ALT60 | ALT80 | ALT100 | ALT120 |
|---|---|---|---|---|---|---|
| Capacity | 20 t/h | 45 t/h | 60 t/h | 80 t/h | 100 t/h | 120 t/h |
| Power | 34kw | 65kw | 105kw | 135kw | 170kw | 200kw |
| Cold Aggregate Hoppers | 3.5m³×1 | 4m³×4 | 4m³×4 | 6.5m³×4 | 6.5m³×4 | 6.5m³×4 |
| Finished Aggregate Storage Bin | 2 m³ | 2.5 m³ | 4.5 m³ | 5 m³ | 7 m³ | 7 m³ |
| Asphalt Temperature | 120-180 ℃ | |||||
| Fuel consumption | 13-15kg/t | |||||
| Asphalt Tank | 10 m³ | 20 m³ | 30 m³ | 30 m³ | 35 m³ | 35 m³ |
| Control room | 2.2m | 2.2m | 3m | 3m | 3.5m | 3.5m |
| Option | Bag dust filter/water dust filter | |||||
Stationary Asphalt Drum Mix Plant Projects

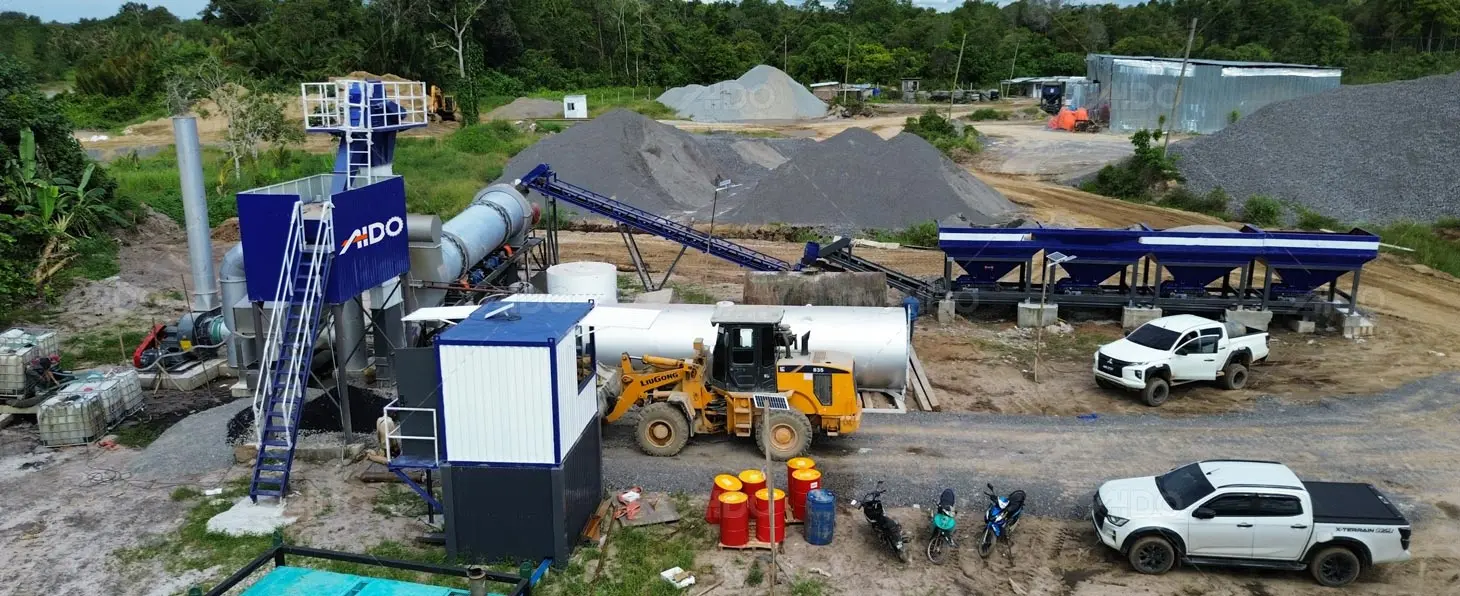

Stationary Asphalt Drum Mix Plant in Malaysia
Equipment: ALT80
Application: Private Highway Construction Project
Supporting a first-time plant operator, our engineers helped set up the continuous drum mixing line, enabling self-supplied hot mix asphalt to strictly control material quality and accelerate paving schedules.

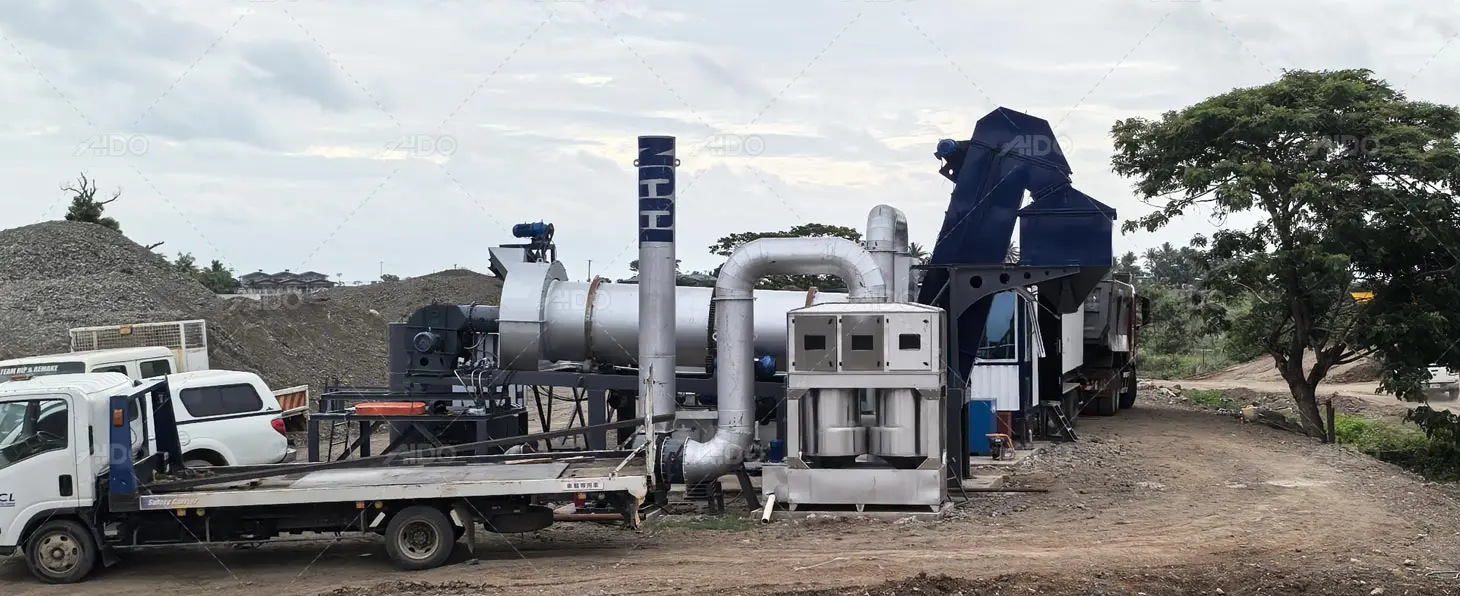

Stationary Asphalt Drum Mix Plant in Fiji
Equipment: ALT40
Application: Commercial Supply & Road Paving
To solve local asphalt shortages and high purchasing costs, the contractor introduced this compact drum mix plant to satisfy both self-use paving projects and local commercial hot mix supply.
Key Features of Stationary Asphalt Drum Mix Plants
Continuous Drying & Mixing Drum
Integrates aggregate drying and asphalt coating in a single heavy-duty drum, providing continuous, non-stop hot mix output with low operating costs.
Accurate Bitumen & Feeder Metering
Variable speed cold aggregate feeders combined with high-precision bitumen metering pumps ensure exact binder-to-aggregate proportions continuously.
High Thermal Efficiency Burner
Advanced energy-saving burner with optimized internal drum flighting maximizes thermal heat transfer and significantly cuts fuel consumption.
Compact Footprint & Low Investment
Simplified structural layout without screening towers lowers initial machinery capital investment, site preparation costs, and installation time.
Efficient Eco Dust Collector
Equipped with a primary cyclone or optional secondary baghouse system to filter exhaust gas and effectively reduce airborne dust emissions.
User-Friendly Central Control
Centralized PLC control panel features real-time monitoring, intuitive speed adjustments, and auto-diagnostic alerts for effortless daily operation.
Comprehensive Service & Support
Spare Parts Supply
A comprehensive spare parts inventory covers mixer wear liners, burner nozzles, filter bags, drying drum flights, valves, and other essential components.
Expert Technical Support
Our experienced technical team supports asphalt plant design, installation, troubleshooting, and maintenance, with online and on-site assistance.
24/7 After-Sales Service
Our after-sales team is available 24/7 to answer questions and provide online or on-site support throughout your equipment’s service life.
Find the Right Asphalt Mixing Plant
Looking for a suitable asphalt mixing plant for your project? Tell us your required production capacity, application, and site conditions. Our team will help you explore suitable options and find the right solution for your needs.
