Gantry Crane

Reliable Gantry Lifting for Open Yards and Industrial Sites

Types：Single-Girder & Double-Girder

10–800tons

Gantry cranes feature a bridge girder supported by legs that travel on rails or wheels, allowing them to lift and move heavy loads without requiring building-supported runway structures. Available in different configurations and lifting capacities, they provide flexible material handling for outdoor yards, construction sites, ports, shipyards, and industrial facilities. Their adaptable structure makes them suitable for handling steel products, precast concrete components, machinery, and other heavy materials.

Types of Gantry Cranes

Double Girder

Single Girder

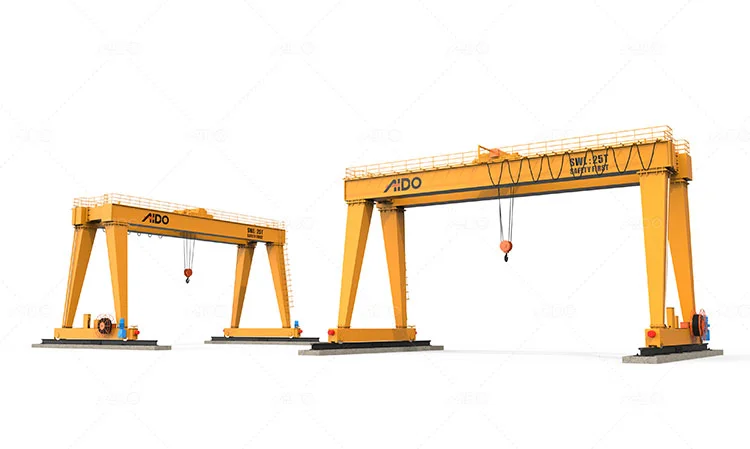

Double Girder Gantry Crane

Lifting Capacity: 10–800 t

Features: High load capacity, stable lifting, and flexible hoist configurations for demanding operations.

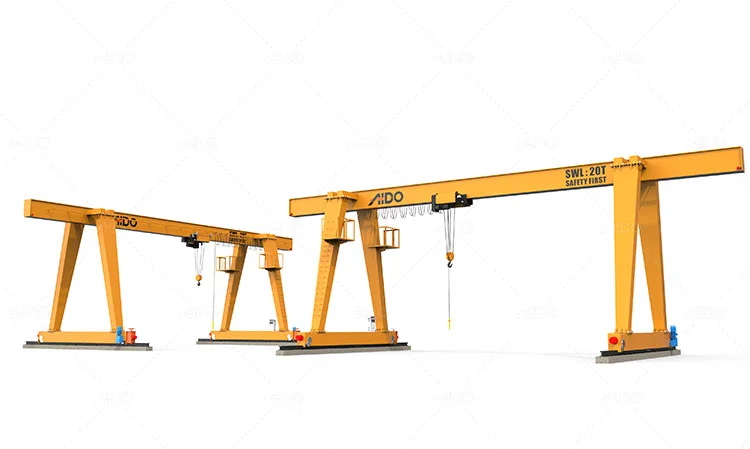

Single Girder Gantry Crane

Lifting Capacity: 10–32 t

Features: Lightweight structure, cost-effective design, and flexible installation without a building runway system.

Technical Parameters

Double Girder

Single Girder

Model	Capacity	Span	Lifting Height	Duty Class
MG Double Girder Gantry Crane	10-800t	10.5-35m	5-30m	A3-A7
NMG European-Style Double Girder Gantry Crane	10-800t	10.5-35m	5-30m	A3-A7
MZ Grab Bucket Gantry Crane	10-20t	10.5-35m	5-30m	A5-A7
MCL Electromagnetic Beam Gantry Crane	10-50t	10.5-35m	5-30m	A5-A7
RMG Rail-Mounted Gantry Crane	10-50t	10.5-35m	12.5-18.5m	A6-A8
RTG Rubber-Tyred Gantry Crane	10-50t	10.5-35m	12.5-18.5m	A6-A8

Model	Capacity	Span	Lifting Height	Duty Class
MH Single Girder Gantry Crane	10-32t	10.5-35m	6-30m	A3-A4
NMH European-Style Single Girder Gantry Crane	10-32t	10.5-35m	6-30m	A5

Gantry Crane Projects

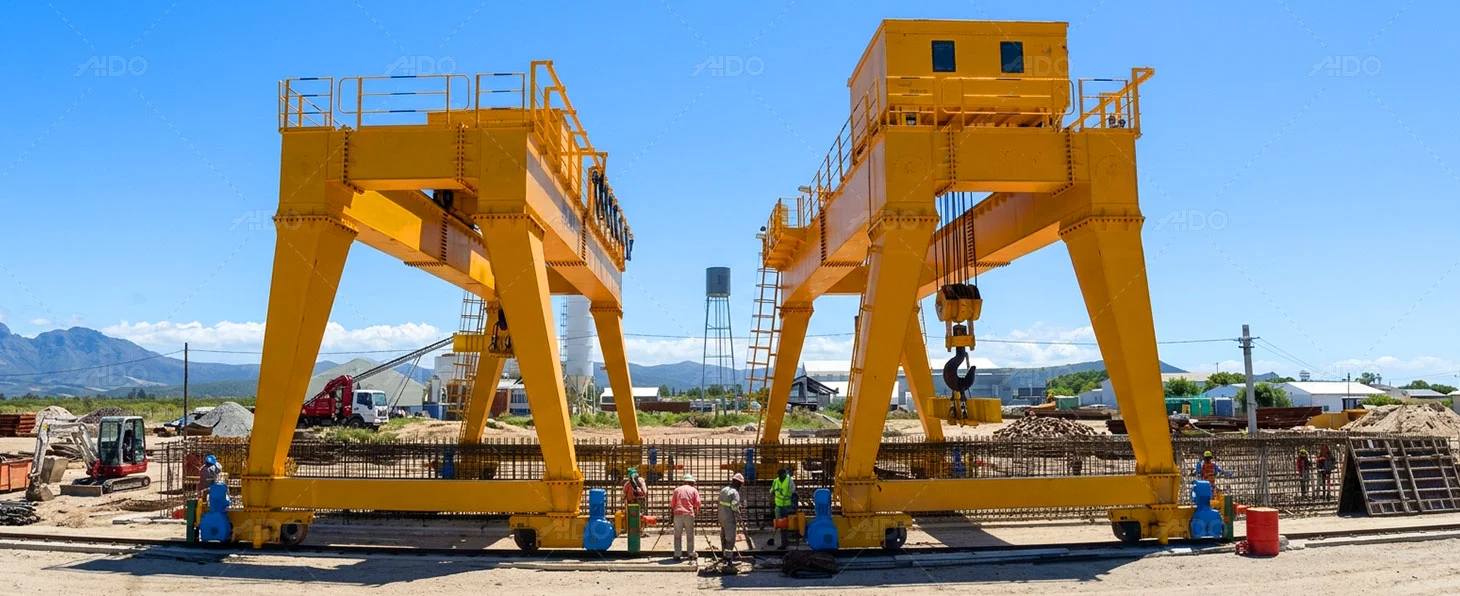

Double Girder 70-Ton Gantry Cranes for Precast Concrete Handling in Argentina

Equipment: MG

Application: Precast Concrete Production

Two MG 70-ton gantry cranes work in tandem to lift and transfer large precast concrete components. Their coordinated operation supports stable, efficient handling and positioning throughout the precast production process.

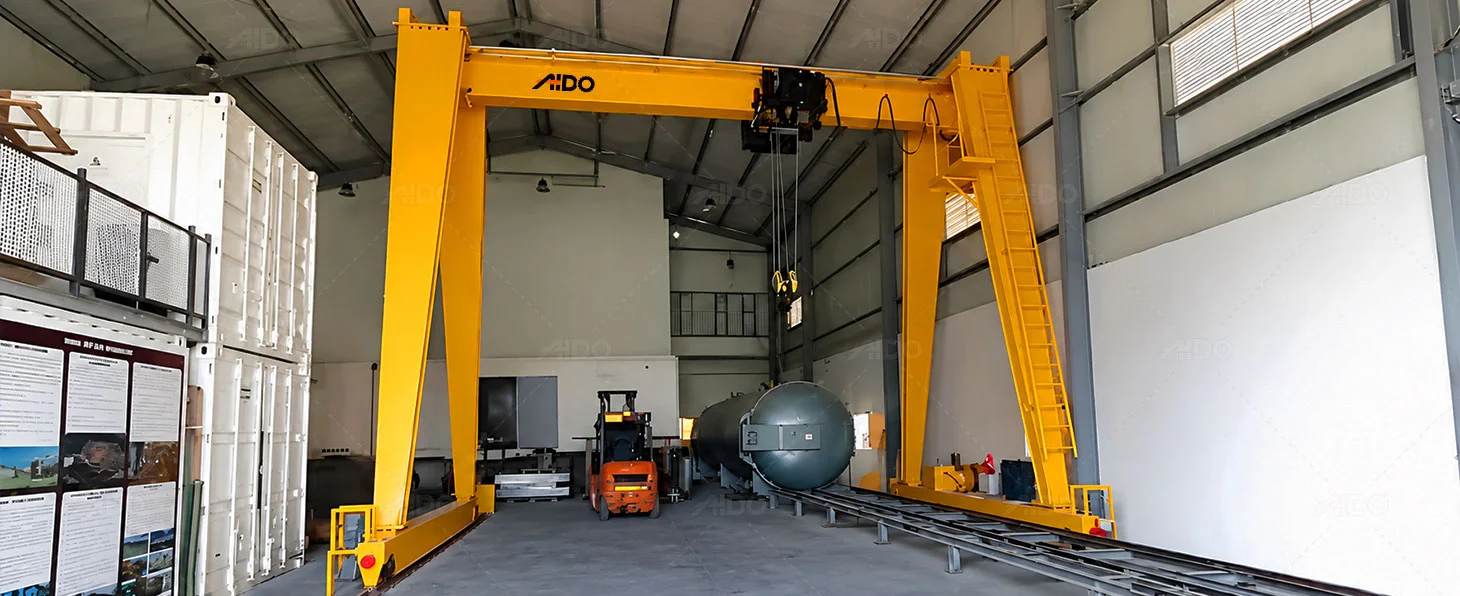

12T European-style single-girder gantry crane for material handling in a rubber products factory in Qatar

12T Single Girder Gantry Crane for a Rubber Products Factory in Qatar

Equipment: NMH

Specifications: 12 t Capacity | 8.65 m Span | 6 m Lifting Height

Customized to fit the factory’s limited workspace, the NMH crane provides suitable lifting dimensions for indoor material handling without taking up unnecessary space.

Key Features of Gantry Cranes

Freestanding Design for Flexible Installation

Supported by legs and ground rails or wheels, gantry cranes do not require an overhead runway structure, making them suitable for open yards and facilities without existing crane runways.

Customizable Lifting Capacity and Configuration

Available in single-girder and double-girder designs, with lifting capacity, span, lifting height, and hoisting mechanisms selected to match project requirements.

Efficient Material Handling Across Open Areas

The gantry structure allows loads to be lifted and moved horizontally across designated work areas, supporting efficient handling of equipment, steel, precast components, and other heavy materials.

Adaptable to Different Site Conditions

Suitable for indoor workshops, outdoor storage yards, precast concrete plants, and construction sites, with configurations selected according to ground conditions and operating needs.

Smooth and Precise Crane Operation

Variable-frequency drive (VFD) controls and remote operation, where equipped, help regulate travel and lifting speeds for smoother movement and more accurate load positioning.

Reliable Performance with Safety Protection

Robust structural components and optional safety devices, such as overload protection, travel limit switches, and emergency stops, support dependable operation in demanding working environments.

Comprehensive Service & Support

Spare Parts Supply

We supply essential gantry crane spare parts, including wire ropes, hooks, wheels, brakes, motors, gearboxes, and electrical components to support equipment maintenance and replacement.

Expert Technical Support

Our technical team provides support for gantry crane selection, installation, commissioning, troubleshooting, and maintenance, with online and on-site assistance.

24/7 After-Sales Service

Our after-sales team is available 24/7 to respond to inquiries and provide online or on-site assistance, helping keep your gantry crane operating reliably.

Find the Right Gantry Crane

Tell us your lifting capacity, span, lifting height, and site conditions. Our team will help you select the right gantry crane configuration for your project.
