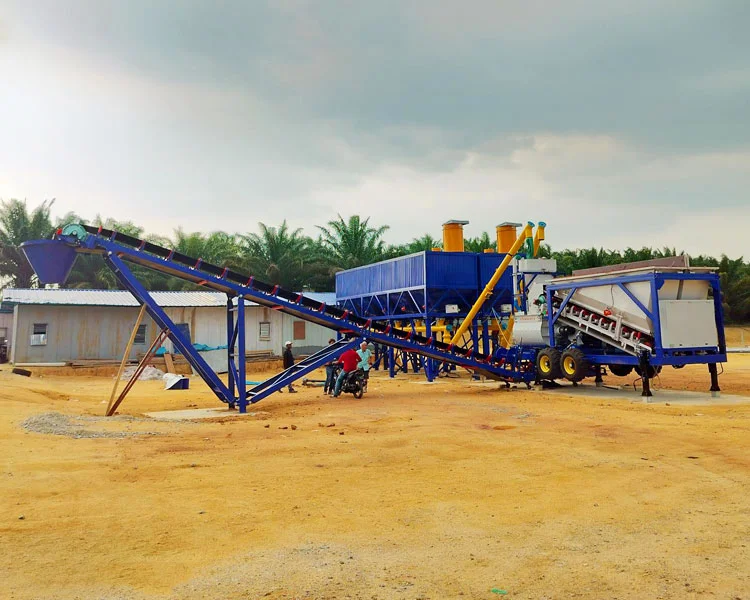

Compact Concrete Batching Plant
Compact Design for Small Projects & Easy Relocation
Production Capacity: 40, 60m³/h
The AJSY-Series compact concrete batching plant is designed for small-batch concrete production at sites with limited space and frequent relocation needs. It integrates batching, mixing, water supply, and control systems into a compact mobile unit. Its lightweight design, quick setup, and simple operation make it suitable for rural housing, small infrastructure projects, irrigation works, and maintenance applications.

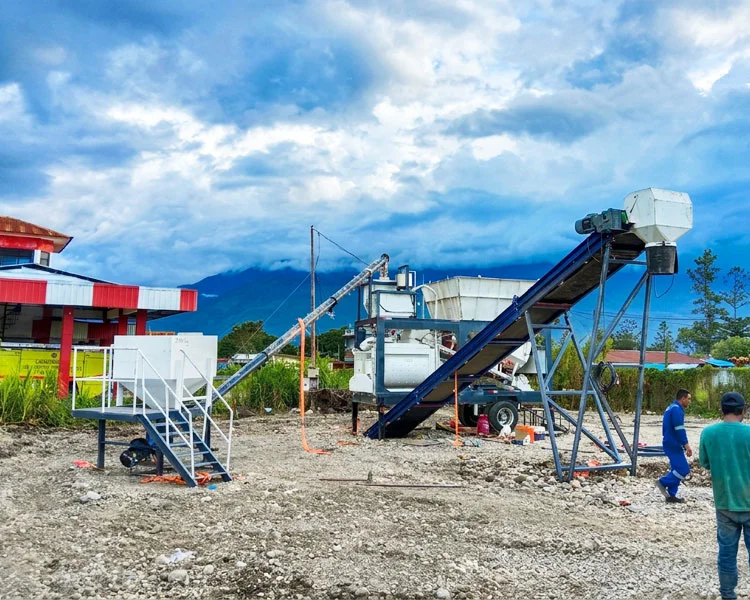

AJSY Compact Mobile Concrete Batching Plant Models
AJSY40
Compact design for small to medium construction projects with limited space.
AJSY60
Higher production capacity for growing construction projects requiring a compact batching solution.
Technical Parameters
| Model | AJSY40 | AJSY60 |
|---|---|---|
| Theoretical productivity (m³/h) | 40 | 60 |
| Mixer discharge volume (L) | 1000 | 1500 |
| Mixer feeding volume (L) | 1500 | 2250 |
| Mixer power (kw) | 18.5×2 | 30×2 |
| Discharge height (m) | 4.1 | 4.1 |
| Aggregate bin configuration (number × single bin volume, m³) | 2×4.5 | 2×4.5 |
| Cycle time (s) | 60 | 60 |
| Maximum aggregate particle size (mm) | 60/80 | 60/80 |
| Cement silo (optional) | 1×100 | 1×100 |
| Aggregate weighing system | ±2% | ±2% |
| Powder weighing system | ±1% | ±1% |
| Water weighing system | ±1% | ±1% |
| Additive weighing system | ±1% | ±1% |
| Installed power (kw) | ≈70 | ≈100 |
| Control mode | Buttons + Touch Screen + Remote Control | |
| Power supply | 220V/415V/440V/380V, 50Hz/60Hz, three-phase | |
Compact Concrete Batching Plant Projects

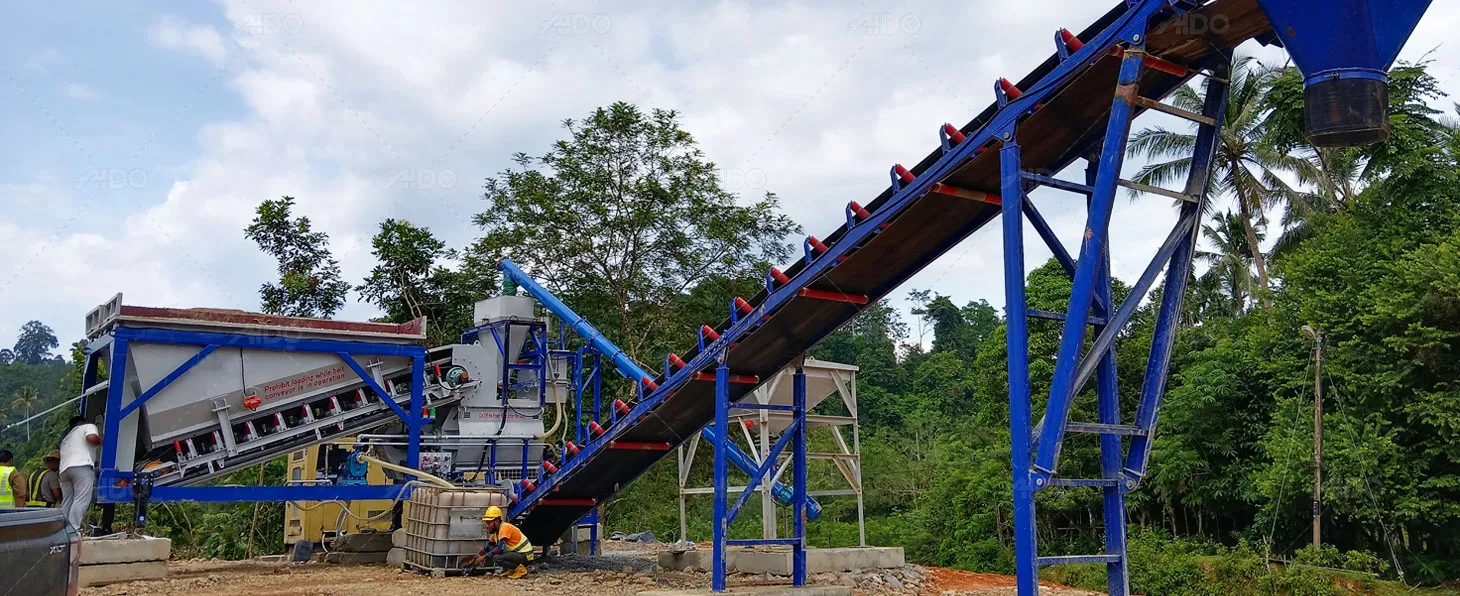

Mobile Compact Concrete Batching Plant in Malaysia
Equipment: AJSY40
Application: Bridge & Road Construction
With limited site space and a tight construction schedule, the AJSY40 was installed and commissioned within 10 days. It provided reliable concrete supply for bridge foundations and road construction, and the customer expressed satisfaction with its performance.

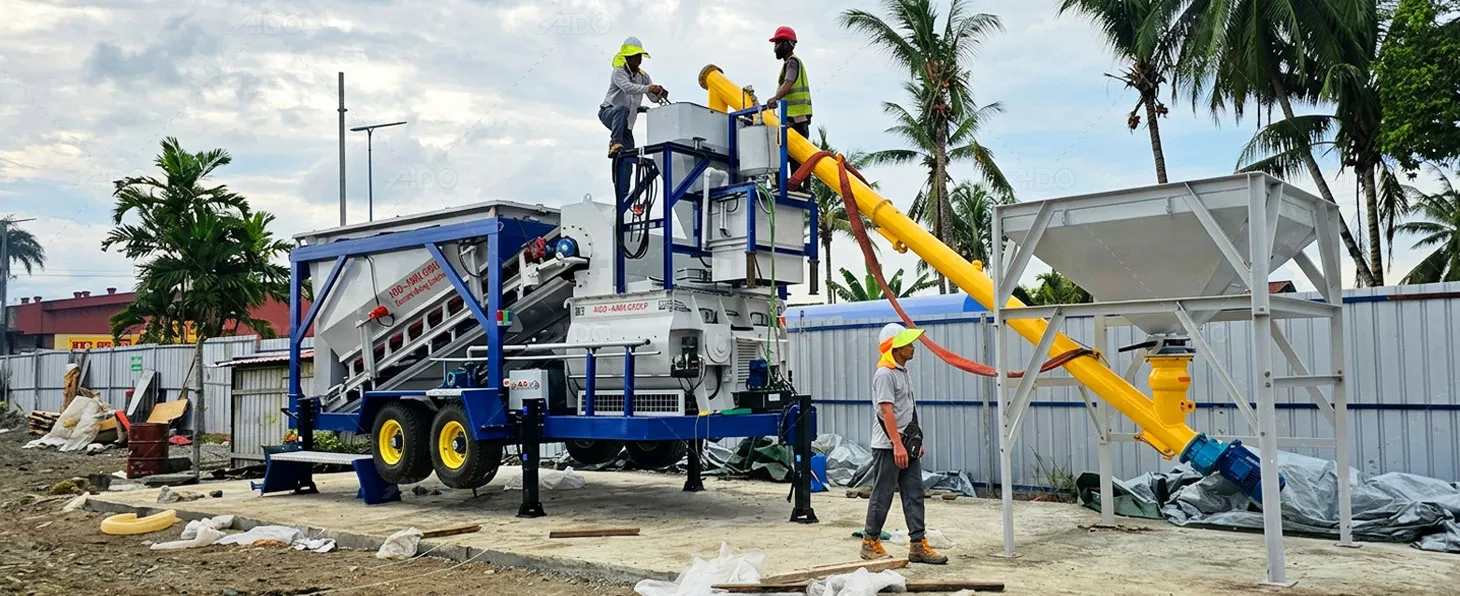

Compact Concrete Batching Plant in Papua New Guine
Equipment: AJSY40
Application: Commercial Office Building Construction
One AJSY40 mobile concrete batching plant was selected to support the construction of a commercial office building spanning approximately 20,000 m², providing on-site concrete production for the project.
Key Features of Compact Concrete Batching Plant
Compact Design & Easy Relocation
With a complete machine weight of approximately 3–8 tons, the AJSY-Series can be towed by a suitable truck or trailer, facilitating transfers along rural roads and between confined construction sites.
Rapid Installation & Quick Start-Up
The mixer, batching machine, water system, and control components are integrated into one compact unit. Under suitable site conditions, 1–2 operators can complete setup and commissioning within 1–3 hours.
Small Footprint for Confined Sites
Requiring approximately 200 m² of working space, the plant fits rural courtyards, fields, narrow construction areas, and other space-constrained sites. With a suitable conveyor system, it can be positioned closer to the point of use to reduce concrete transport distance.
Accurate Batching for Consistent Mix Proportions
The AJSY40 offers aggregate weighing accuracy of approximately ±2% and powder, water, and admixture weighing accuracy of ±1%, helping maintain consistent batching proportions.
Simple Controls & Easy Operation
Depending on the configuration, the plant supports PLC, touchscreen, and remote-control operation, simplifying routine batching and production without requiring a highly specialized operator.
Cost-Effective for Small Projects
Its compact structure, simplified equipment configuration, and accessible wearing parts help reduce investment and routine maintenance requirements, making it suitable for small contractors and rural construction teams.
Comprehensive Service & Support
Spare Parts Supply
A comprehensive spare parts inventory covers mixer wear liners, batching belt motors, valves, thermal overload relays, and other essential components.
Expert Technical Support
Our experienced technical team supports concrete batching plant design, installation, troubleshooting, and maintenance, with online and on-site assistance.
24/7 After-Sales Service
Our after-sales team is available 24/7 to answer questions and provide online or on-site support throughout your equipment’s service life.
Find the Right Concrete Batching Plant
Looking for a suitable concrete batching plant for your project? Tell us your required production capacity, application, and site conditions. Our team will help you explore suitable options and find the right solution for your needs.
