Concrete Pump

Applications: Building Construction, Bridge Construction, Tunnel Projects & Foundations

30–90m³/h

Concrete pumps are designed to transport fresh concrete efficiently through pipelines or placing booms to the required pouring locations. Different pump types meet varying construction requirements, from foundation pouring and remote-site concrete supply to high-rise buildings and large-scale infrastructure projects.

Types of Concrete Pumps

Trailer Pump

Mixer Pump

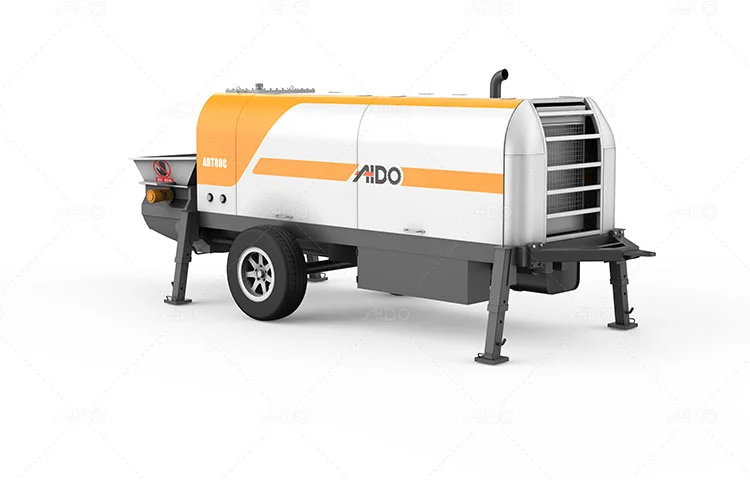

Concrete Trailer Pump

Model: ABT30C/D, ABT40C/D, ABT60C/D, ABT80C/D, ABT90C/D

Power: Diesel/Electric, Capacity: 30m³/h-90m³/h

High-Pressure Pumping for Long-Distance Concrete Delivery

Concrete Mixer Pump

Model: ABJW30C, ABJZ30C/D, ABJZ40C/D

Power: Diesel/Electric, Capacity: 30m³/h; 40m³/h

Mixing and Pumping in One Machine

Technical Parameters

Diesel Trailer Pump

Electric Trailer Pump

Mixer Pump

Items	Key Parameters	Units	ABT40C	ABT60C	ABT80C
Whole performance of machine	Max. theo. concrete output(L./H)	m³/h	40/26	67/45	84/45
	Max.concrete pumping pressure(H./L.)	MPa	10/8	13/7	16/7
	Distribution valve type		S Valve	S Valve	S Valve
	Concrete cylinder diameter×stroke	mm	Φ180×1200	Φ200×1650	Φ200×1800
	Hopper capacity x feeding height	L/mm	400/1100	800/1400	800/1400
	Outlet diameter	mm	Φ150	Φ180	Φ180
Power system	Diesel engine model		Weichai	Weichai	Weichai
	Diesel engineering power	KW	82	129	176
	Rotate speed	r/min	2200	2200	2200
Hydraulic system	Circuit type		Open circuit	Open circuit	Open circuit
	Pumping system pressure	MPa	32	32	32
	Mixing system pressure	MPa	10	10	10
	Capacity of oil tank	L	370	560	560
Other parameters	Max. Theoretical Vertical/Horizontal Conveying Distance	m	120/500	180/1000	260/1200
	Max. aggregate diameter	mm	Slick/scree:40	Slick/scree:40	Slick/scree:40
	Inside diameter of delivering pipe	mm	Φ125	Φ125	Φ125
	Dimensions：length×width×height	mm	5000x1850x1700	5800x2000x1750	6300x2100x2350
	Total weight	kg	4500	6500	6900

Items	Key Parameters	Units	ABT40D	ABT60D	ABT80D
Whole performance of machine	Max. theo. concrete output(L./H)	M3/h	40/26	60/36	84/46
	Max.concrete pumping pressure(H./L.)	MPa	10/8	13/7	16/9
	Distribution valve type		S Valve	S Valve	S Valve
	Concrete cylinder diameter×stroke	mm	Φ180×1300	Φ200×1650	Φ200×1800
	Hopper capacity x feeding height	L/mm	400/1250	800/1400	800/1400
	Outlet diameter	mm	Φ150	Φ180	Φ180
	Electrical engineering power	KW	45	90	110
	Rotate speed	r/min	1480	1480	1480
Hydraulic system	Circuit type		Open circuit	Open circuit	Open circuit
	Pumping system pressure	MPa	28	28	32
	Mixing system pressure	MPa	10	10	10
	Capacity of oil tank	L	370	560	560
Other parameters	Max. Theoretical Vertical/Horizontal Conveying Distance	m	120/500	160/800	200/1000
	Max. aggregate diameter	mm	Slick/scree:40	Slick/scree:40	Slick/scree:40
	Inside diameter of delivering pipe	mm	Φ125	Φ125	Φ125
	Dimensions：length×width×height	mm	4500x1750x1600	5500x2000x1750	5800x2100x2350
	Total weight	kg	3200	6000	6300

Items	Key Parameters	Units	ABJZ30C	ABJZ30D	ABJZ40C	ABJZ40D
Whole performance of machine	Max. theo. concrete output(L./H)	m³/h	30	30	40	40
	Mixer rated feed capacity	m3	0.56	0.56	0.56	0.56
	Mixer rated discharge capacity	m3	0.35	0.35	0.45	0.45
	Max.concrete pumping pressure(H./L.)	MPa	10	10	10	10
	Distribution valve type		S Valve	S Valve	S Valve	S Valve
	Hopper capacity	L	400	400	400	400
Power system	Diesel engine model		Weichai
	Electrical engineering power	KW	37	37	82	45
	Rotate speed	r/min	1480	1480	2200	1480
Hydraulic system	Circuit type		Open circuit	Open circuit	Open circuit	Open circuit
	Pumping system pressure	MPa	26	26	32	26
	Capacity of oil tank	L	260	260	350	370

Concrete Pump Projects

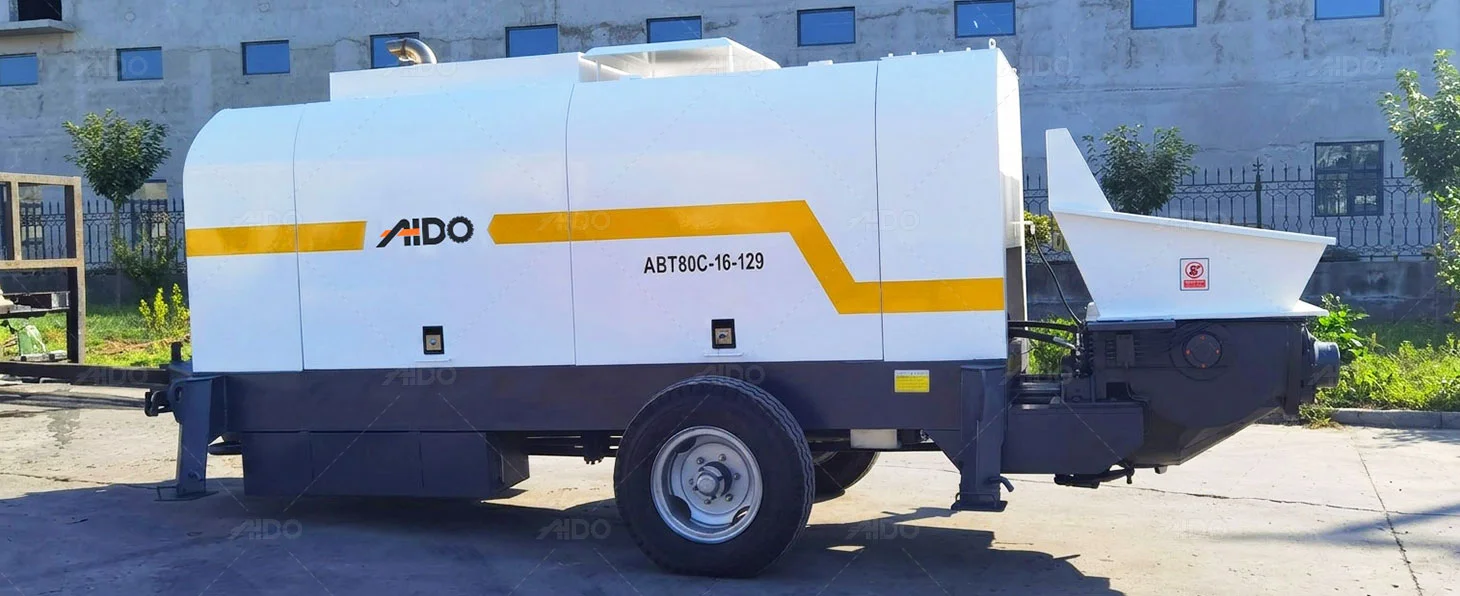

Diesel Trailer Concrete Pump for Building Construction in Russia

Equipment: ABT80C

The construction project required a reliable solution for delivering concrete to pouring locations across the site. The ABT80C diesel trailer concrete pump provided efficient concrete pumping and flexible on-site operation, helping streamline concrete placement and keep construction work progressing smoothly.

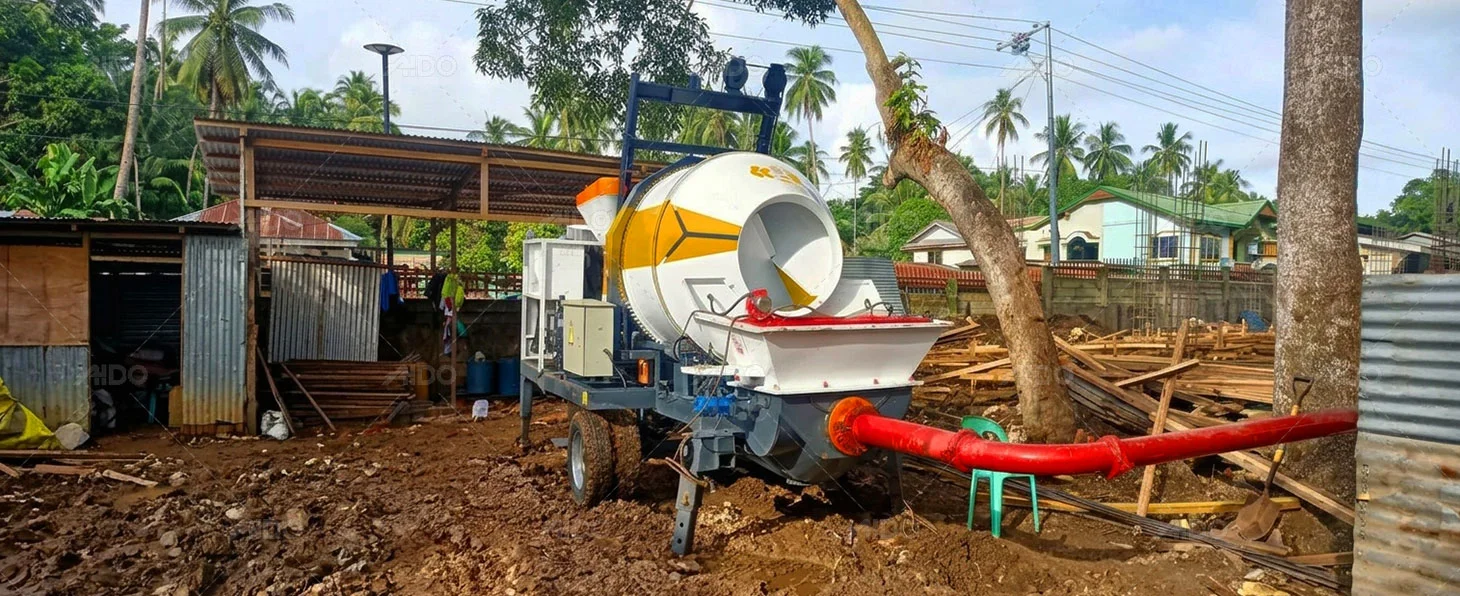

Diesel Concrete Mixer Pump for Spraying Operations in the Philippines

Equipment: ABJZ40C

Application: Concrete Spraying

To meet the project’s spraying requirements, the ABJZ40C diesel concrete mixer pump was modified for spraying operations. After arriving on schedule, the equipment was installed and commissioned with guidance from a technical engineer, helping improve work efficiency at the construction site.

Key Features of Concrete Pumps

Efficient Concrete Pumping

The S-valve, double-cylinder hydraulic system provides high delivery pressure and stable concrete output.

Reverse Pumping Function

Reverse pumping helps clear pipeline blockages quickly, reducing downtime.

Advanced Hydraulic System

The dual-pump, dual-circuit open hydraulic system separates the main pumping and S-valve swing circuits, improving reliability and extending component service life.

Powerful Engine Options

Intelligent Fault Diagnosis

The self-diagnostic system monitors and identifies over 50 fault types, helping reduce troubleshooting time by up to 70%.

Convenient Remote Control

Operate the pump through the control panel or remote control for precise and convenient operation.

Comprehensive Service & Support

Spare Parts Supply

Our concrete pump spare parts inventory covers essential components, including hydraulic fittings, delivery pipes, spectacle wear plates, cutting rings, and other replacement parts.

Expert Technical Support

Our experienced technical team provides support for concrete pump installation, commissioning, troubleshooting, and maintenance, with online and on-site assistance.

24/7 After-Sales Service

Our after-sales team is available 24/7 to respond to your inquiries and provide online or on-site support, helping maintain your concrete pump’s performance and service life

Find the Right Concrete Pump

Tell us your project requirements, concrete delivery distance, pumping height, and site conditions. Our team will help you select the right concrete pump for your application.
