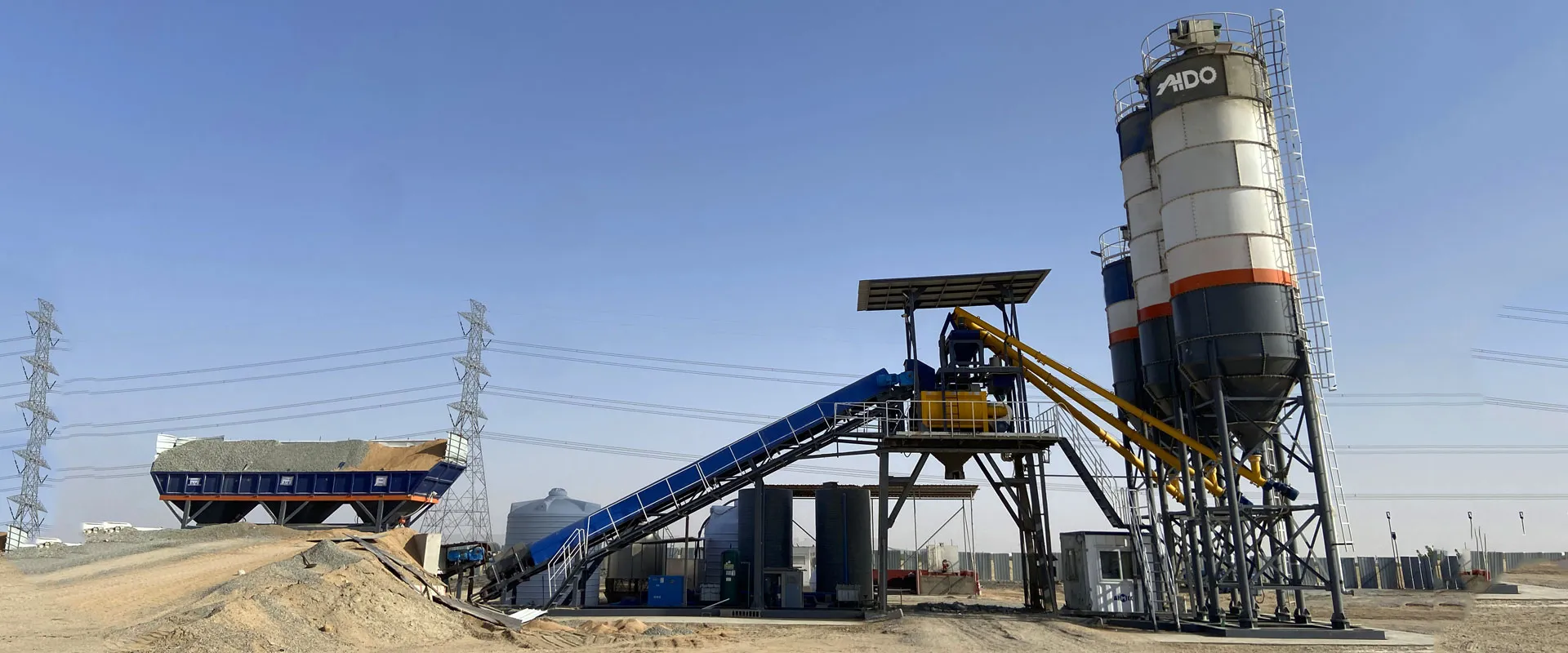

Concrete Batching Plant
Applications:Construction | Infrastructure | Precast Concrete Production
Types：Stationary | Mobile | Compact | Drum | Dry Mix
Applications of Concrete Batching Plants
Building Construction
Reliable concrete production for residential, commercial, and industrial buildings, supporting foundations, columns, beams, and structural construction.
Infrastructure Projects
Consistent concrete supply for roads, bridges, tunnels, ports, terminals, and water infrastructure projects.
Precast Concrete Production
Efficient batching for precast beams, slabs, wall panels, pipes, and other concrete components manufactured in factories.
Types of Concrete Batching Plants
Stationary Concrete Batching Plant
For high-volume, long-term concrete production.

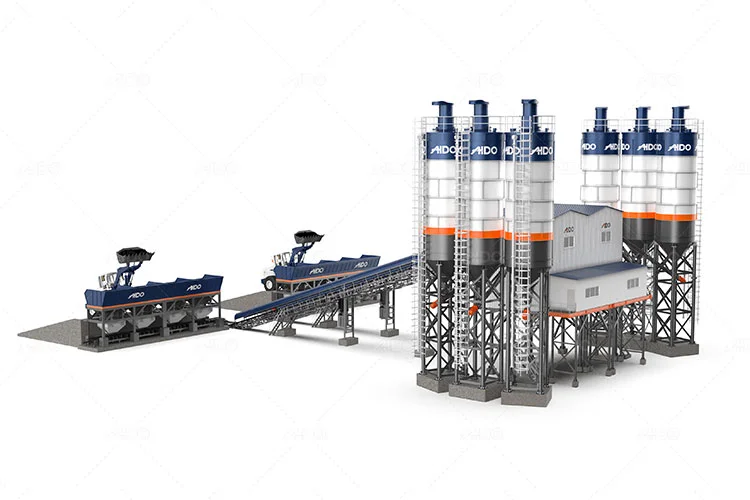

Models: AJ90, AJ120, AJ180, AJ240, AJ270, AJ360

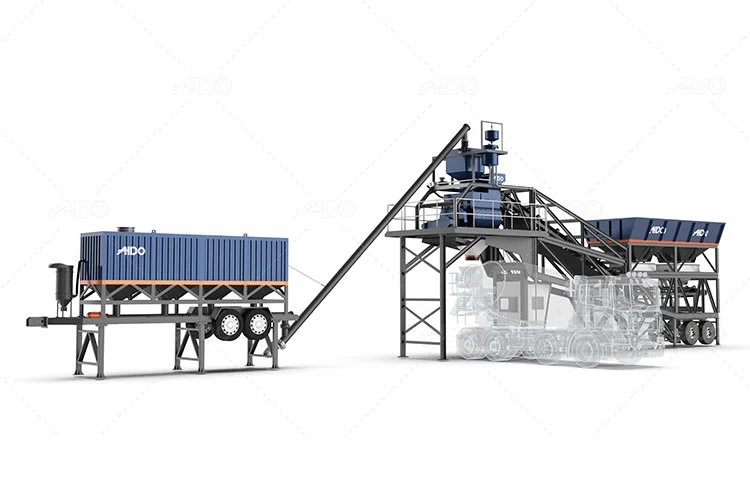

Mobile Concrete Batching Plant
Easy to transport and relocate between job sites.
Models: AJY60, AJY90
Compact Concrete Batching Plant
Space-saving design for sites with limited space.
Models: AJSY40, AJSY60

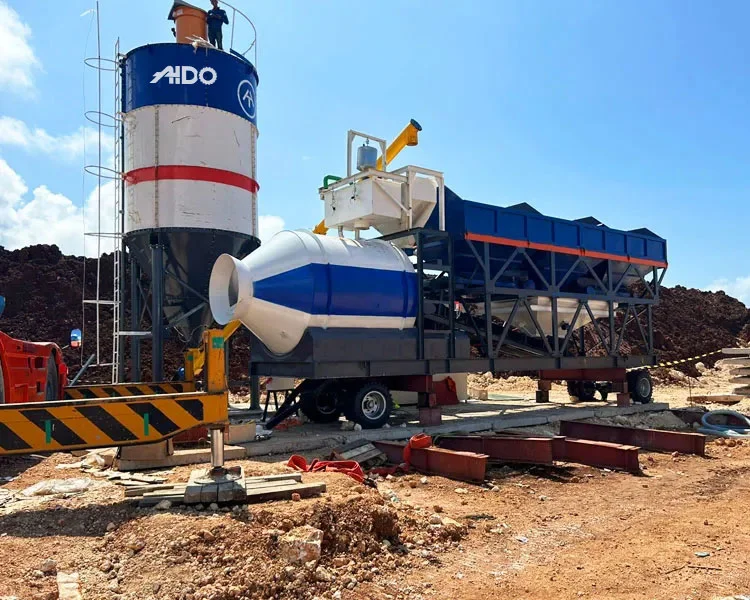

Drum Concrete Batching Plant
Practical drum mixing for efficient concrete production.
Models: AJZY40, AJZY60

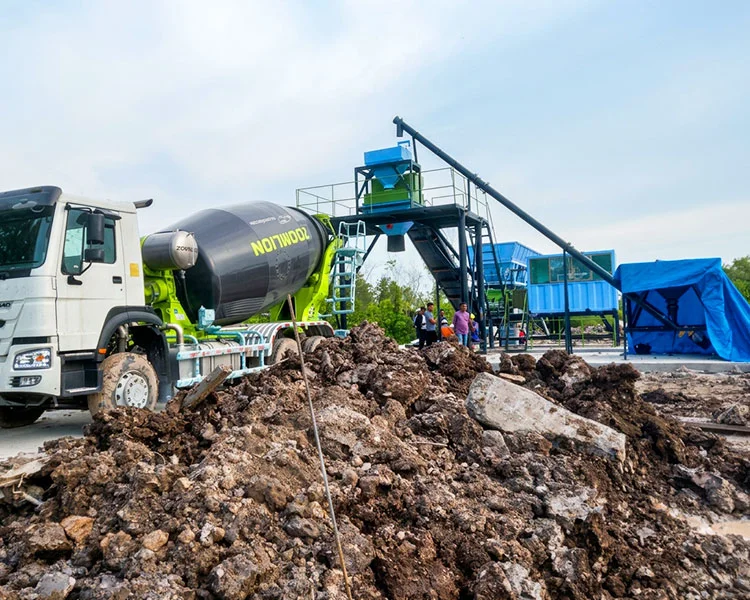

Dry Mix Concrete Batching Plant
Batches dry ingredients for mixing with water later.
Models: AJG60, AJG90, AJG120, AJG180
Technical Parameters
| Model | AJ90 | AJ120 | AJ180 | AJ240 | AJ270 |
|---|---|---|---|---|---|
| Theoretical productivity (m³/h) | 90 | 120 | 180 | 240 | 270 |
| Mixer discharge volume (L) | 1500 | 2000 | 3000 | 4000 | 4500 |
| Mixer feeding volume (L) | 2250 | 3000 | 4500 | 6000 | 6750 |
| Mixer power (kw) | 30×2 | 37×2 | 55×2 | 75×2 | 75×2 |
| Discharge height (m) | 4.1 | 4.2 | 4.2 | 4.2 | 4.2 |
| Aggregate bin configuration (number × single bin volume, m³) | 4×15 | 4×20 | 4×25 | 4×30 | 4×30 |
| Cycle time (s) | 60 | 60 | 60 | 60 | 60 |
| Maximum aggregate particle size (mm) | 80/100 | 80/100 | 80/100 | 80/100 | 80/100 |
| Cement silo (optional) | 3×100 | 4×100 | 4×100 | 4×100 | 4×100 |
| Aggregate weighing system | ±2% | ±2% | ±2% | ±2% | ±2% |
| Powder weighing system | ±1% | ±1% | ±1% | ±1% | ±1% |
| Water weighing system | ±1% | ±1% | ±1% | ±1% | ±1% |
| Additive weighing system | ±1% | ±1% | ±1% | ±1% | ±1% |
| Installed power (kw) | ≈160 | ≈220 | ≈290 | ≈340 | ≈340 |
| Control mode | Fully automated computer (PC) control | ||||
| Power supply | 220V/415V/440V/380V, 50Hz/60Hz, three-phase | ||||
| Model | AJY-60 | AJY-90 |
|---|---|---|
| Theoretical production efficiency (m3 /h) | 60 | 90 |
| Mixer discharge capacity (liter) | 1000 | 1500 |
| Mixer feeding capacity (liter) | 1600 | 2400 |
| Mixer motor power (kw) | 18.5×2 | 30×2 |
| Discharge height (m) | 4.1 | 4.1 |
| Aggregate storage capacity (m3) | 8×3 | 12×3 |
| Working cycle period (sec) | 60 | 60 |
| Maximum aggregate particle size (mm) | 80/100 | 80/100 |
| Cement silo (tons) (optional) | 100×1 | 100×2 |
| Aggregate weighing system precision | ±2% | ±2% |
| Accuracy of powder weighing system | ±1% | ±1% |
| Precision of water weighing system | ±1% | ±1% |
| Accuracy of additive weighing system | ±1% | ±1% |
| Installation power (kw) | ≈100 | ≈140 |
| Traction method | semi-trailer | semi-trailer |
| Control mode | computer control | computer control |
| Power supply | 220V/415V/440V/380V, 50Hz/60Hz, three-phase |
| Model | AJSY40 | AJSY60 |
|---|---|---|
| Theoretical productivity (m³/h) | 40 | 60 |
| Mixer discharge volume (L) | 1000 | 1500 |
| Mixer feeding volume (L) | 1500 | 2250 |
| Mixer power (kw) | 18.5×2 | 30×2 |
| Discharge height (m) | 4.1 | 4.1 |
| Aggregate bin configuration (number × single bin volume, m³) | 2×4.5 | 2×4.5 |
| Cycle time (s) | 60 | 60 |
| Maximum aggregate particle size (mm) | 60/80 | 60/80 |
| Cement silo (optional) | 1×100 | 1×100 |
| Aggregate weighing system | ±2% | ±2% |
| Powder weighing system | ±1% | ±1% |
| Water weighing system | ±1% | ±1% |
| Additive weighing system | ±1% | ±1% |
| Installed power (kw) | ≈70 | ≈100 |
| Control mode | Buttons + Touch Screen + Remote Control | |
| Power supply | 220V/415V/440V/380V, 50Hz/60Hz, three-phase | |
| Model | AJZY40 | AJZY60 | |
|---|---|---|---|
| Theoretical Production Capacity (m³/h) | 40 | 60 | |
| Batching Machine | Drum Mixer | JZM1000 | JZM1500 |
| Motor Power (kw) | 11×2 | 15×2 | |
| Mixing cycle (s) | 90 | 90 | |
| Discharge Height (m) | 1.5 | 1.5 | |
| Batching Machine | PLD1200 | PLD1600 | |
| Storage Capacity (m³) | 4×2/3 | 6×2/3 | |
| Motor Power (kw) | 4×3 | 4×3 | |
| Sensor (kg) | 2000×3 | 2000×3 | |
| Cylinder | 100×250 | 100×250 | |
| Belt (mm) | 600mm | 600mm | |
| Feeding Height (mm) | 3200 | 3200 | |
| Cement Weighing System Accuracy | Weighing Accuracy | ±1% | ±1% |
| Water Weighing System Accuracy | Weighing Accuracy | ±1% | ±1% |
| Water Pump Power (kw) | 3 | 3 | |
| Additive Weighing System Accuracy | Weighing Accuracy | ±1% | ±1% |
| Bump Power (kw) | 1.1 | 1.1 | |
| Chassis | Dimension (mm) | 8410×2000×780 | 11100×2000×780 |
| Tire Size (mm) | 1000 | 1000 | |
| Control System | Electronic Components | ZHENG TAI | ZHENG TAI |
| Control | PLY1000 semi-automatic control system | PLY1000 semi-automatic control system |
| Model | AJG60 | AJG90 | AJG120 | AJG180 |
|---|---|---|---|---|
| Theoretical Production Capacity (m³/h) | 60 | 90 | 120 | 180 |
| Discharging Height (m) | 3.8 | 4.1 | 4.1 | 4.1 |
| Aggregate Bin Configuration (Number × bin Volume, m³) | 2×7 | 3×10 | 3×12 | 4×18 |
| Cycle Period (s) | 60 | 60 | 60 | 60 |
| Maximum Aggregate Size (mm) | 60/80 | 60/80 | 60/80 | 60/80 |
| Cement silo (Optional) | 1×100 | 2×100 | 3×100 | 4×100 |
| Aggregate Weighing System Accuracy | ±2% | ±2% | ±2% | ±2% |
| Powder Weighing System Accuracy | ±1% | ±1% | ±1% | ±1% |
| Water Weighing System Accuracy | ±1% | ±1% | ±1% | ±1% |
| Additives weighing system Accuracy | ±1% | ±1% | ±1% | ±1% |
| Installed power (kW) | ≈45 | ≈65 | ≈90 | ≈110 |
| Control Mode | Centralized Control and Monitoring System | |||
| Power Supply | 220V/415V/440V/380V, 50Hz/60Hz, 3 Phases | |||
Concrete Batching Plant Projects

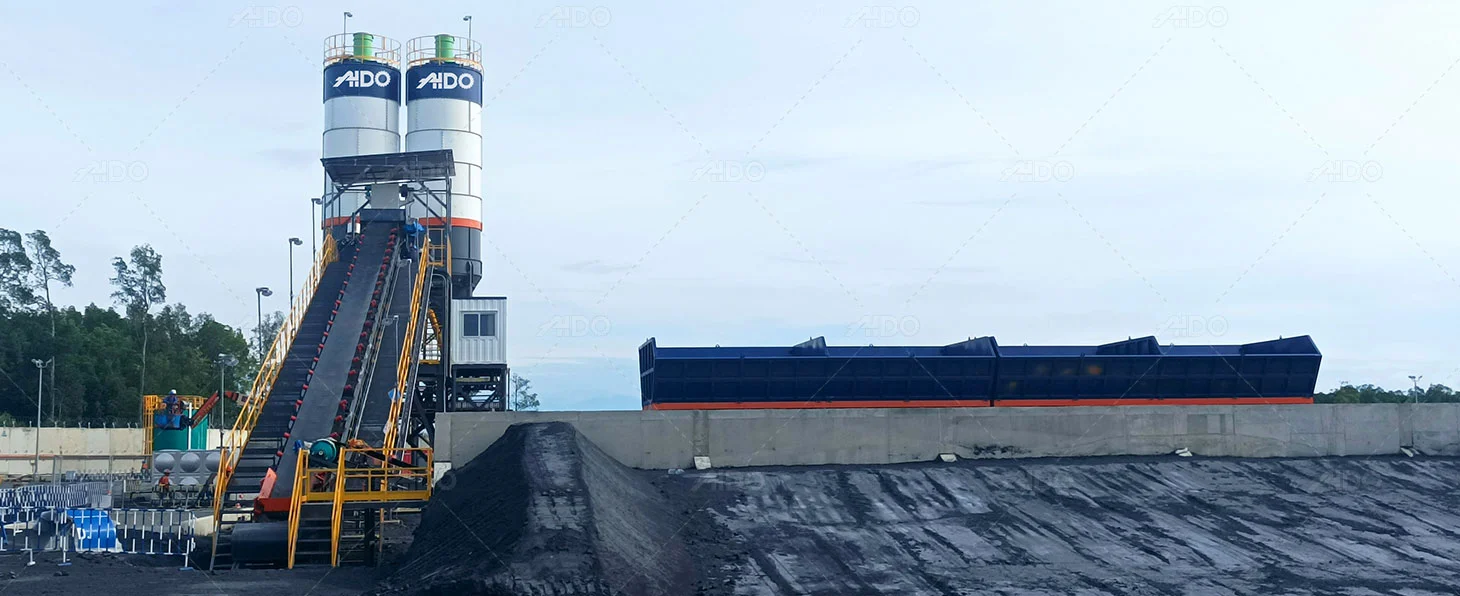

Stationary Concrete Plant for Power Plant Construction in Indonesia
Equipment: AJ90
Application: Power Plant Construction
The power plant project in Indonesia, required a reliable supply of concrete under challenging site conditions. The AJ90 stationary batching plant ensures consistent on-site concrete production to support efficient construction.

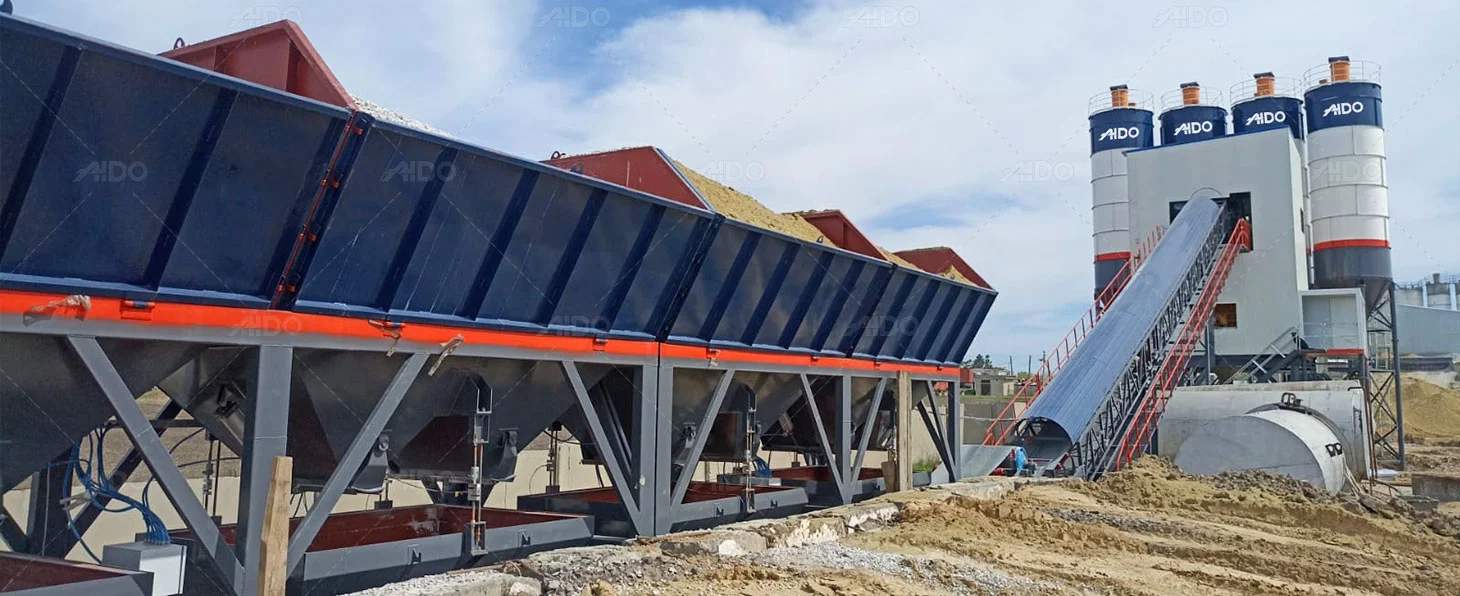

Stationary Concrete Batching Plant in Kazakhstan
Equipment: AJ180
Application: Commercial Concrete Production
The AJ180 stationary concrete batching plant provides high-capacity, reliable concrete production to support construction projects in Kazakhstan, meeting the demand for a consistent concrete supply.
Key Features of Concrete Batching Plants
Accurate Weighing System
Automatic error correction helps ensure accurate batching and consistent concrete quality.
Twin-Shaft Mixer
A split design simplifies maintenance, while durable shafts, gears, blades, and liners support long service life.
Intelligent Control System
Automatic, semi-automatic, and manual modes offer flexible operation, with IoT connectivity for remote monitoring and data management.
Aggregate Batching Machine
Large-capacity hoppers support continuous feeding, while grates help prevent oversized materials from causing blockages.
Reliable Pneumatic Components
Quality components from brands such as AIRTAC ensure stable operation and help reduce maintenance needs.
Emergency Stop Device
Enables rapid shutdown during operation or maintenance to improve operational safety.
Comprehensive Service & Support
Spare Parts Supply
A comprehensive spare parts inventory covers mixer wear liners, batching belt motors, valves, thermal overload relays, and other essential components.
Expert Technical Support
Our experienced technical team supports concrete batching plant design, installation, troubleshooting, and maintenance, with online and on-site assistance.
24/7 After-Sales Service
Our after-sales team is available 24/7 to answer questions and provide online or on-site support throughout your equipment’s service life.
Find the Right Concrete Batching Plant
Looking for a suitable concrete batching plant for your project? Tell us your required production capacity, application, and site conditions. Our team will help you explore suitable options and find the right solution for your needs.
