Stationary Crushing Plant

Applications:Quarrying and Aggregate Production | Mining Operations | Large-Scale Infrastructure Construction

Advantages：High Production Capacity | Stable Operation | Long-Term Reliability

50-1000tph

AIDO stationary crushing plants are designed for long-term, high-capacity aggregate production in quarries, mines, and large-scale construction projects. With customized crushing, screening, and conveying systems, they handle a wide range of raw materials and support capacities from 50 TPH to 1,000 TPH and beyond. Each plant is configured according to material properties, target aggregate sizes, production requirements, and site conditions to ensure an efficient, reliable production process.

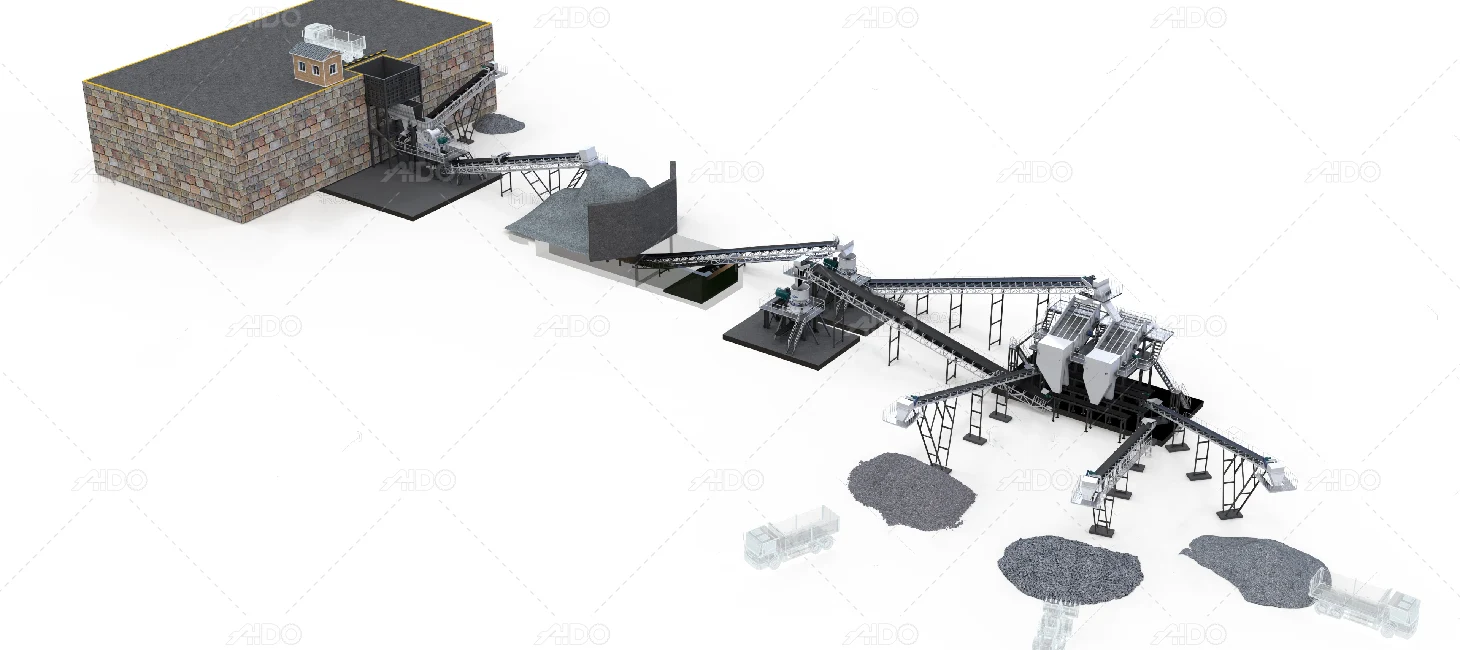

stationary crushing plant design

Main Configurations of Stationary Crushing Plant

APJ-V

APC-M

APF-V

APV-Sand Maker

APG-Vibrating Machine

APS-Screening Machine

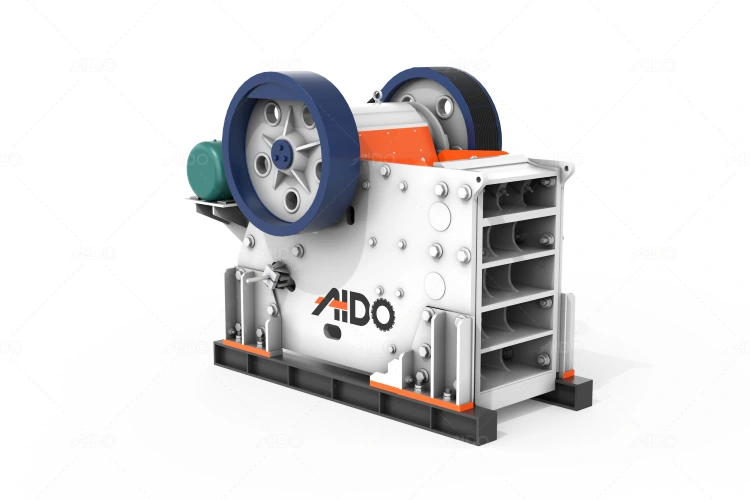

APJ Jaw Crusher

Capacity:100-400 T/H

Output Size(mm):100-180

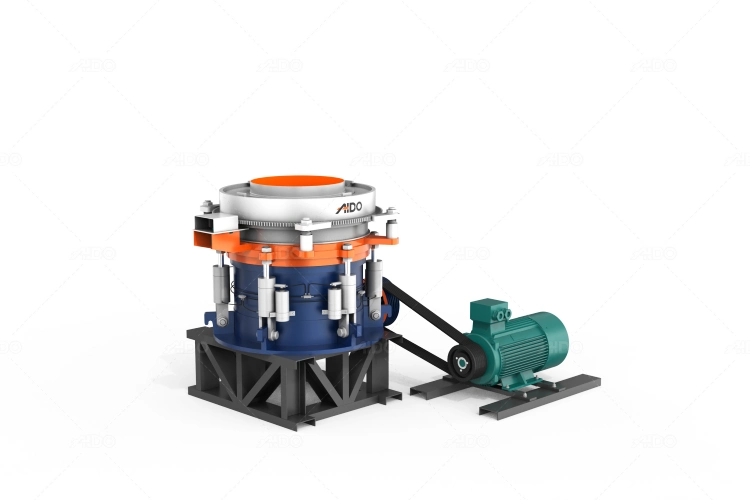

APC-300M multi-cylinder hydraulic cone crusher

APC Cone Crusher

Capacity:70-750 T/H

Output Size(mm):5-10; 10-50

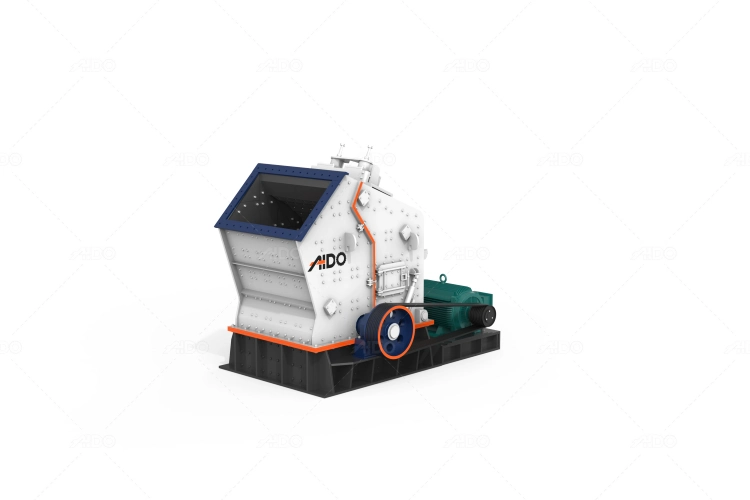

APF Impact Crusher

Capacity:20-800 T/H

Output Size(mm):20-200

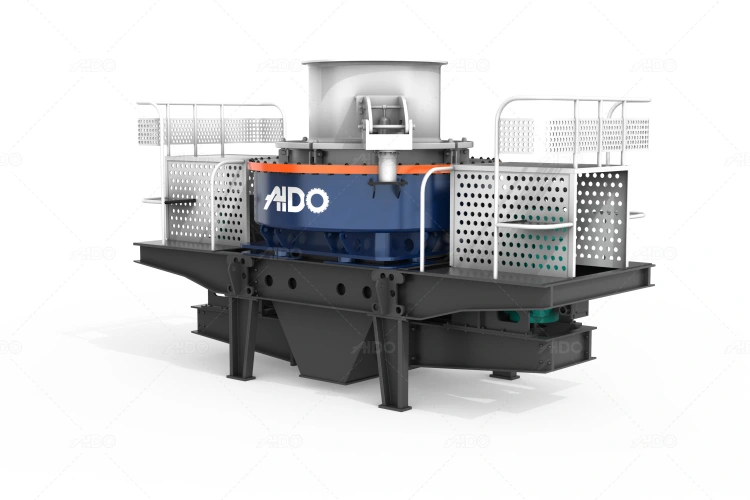

APV Sand Making Machine

Capacity:70-350 T/H

Output Size(mm):0-5

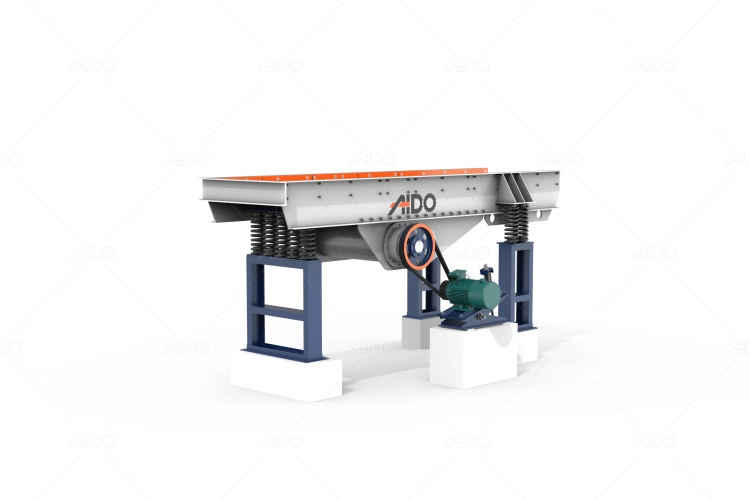

APG Vibrating Feeder

Capacity:96-1200 t/h

Maximum input size(mm):500-1000

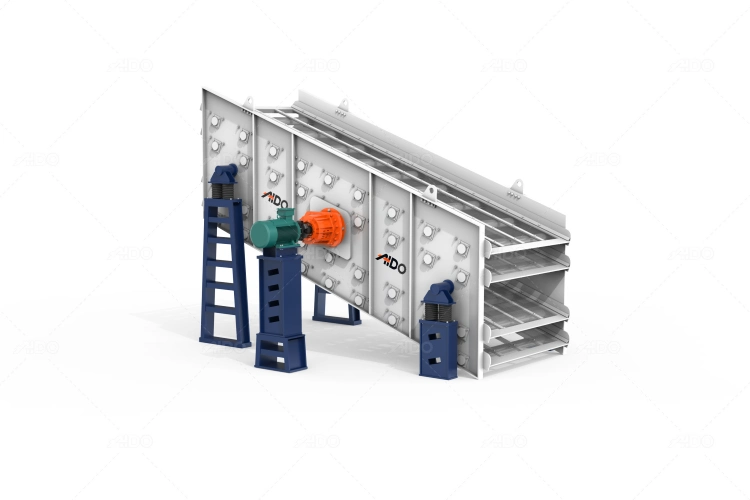

APS Vibrating Screening Machine

Capacity:30-875 t/h

Layer:2-4

Technical Parameters

Jaw Crusher

Cone Crusher

Impact Crusher

Sand Making Machine

Model	Feed opening size (mm)	Maximum feeding size (mm)	Discharge opening size (mm)	Power (kW)	Dimensions L×W×H (mm)	Weight (t)
APJ-2540E	250×400	210	20-60	15	1300×1090×1270	2.8
APJ-4060E	400×600	340	40-100	30	1730×1732×1630	7
APJ-5075E	500×750	425	50-120	55	1980×2080×1870	12
APJ-6090E	600×900	500	65-160	75	2190×2206×2300	17
APJ-7510E	750×1060	630	80-200	110	2660×2430×2800	29
APJ-9012E	900×1200	750	100-250	132	3380×2870×3300	52
APJ-1012E	1000×1200	850	110-265	160	3480×2876×3300	55
APJ-1215E	1200×1500	1000	160-300	220	4200×3300×3500	101
APJ-1518E	1500×1800	1200	180-300	355	5160×3660×4248	139
APJ-1575X	150×750	120	10-40	15	1200×1530×1060	3.8
APJ-2575X	250×750	210	20-50	30	1545×1667×1330	5.5
APJ-2510X	250×1000	210	20-50	37	1530×1992×1380	6.5
APJ-2512X	250×1200	210	20-50	37	1900×2192×1430	7.7
APJ-3013X	300×1300	250	30-80	55	2150×2320×1724	11.4

Model	Feed port size (mm)	Max. feeding size (mm)	Discharging port size (mm)	Power (kW)	Overall size L×W×H (mm)	Weight (t)
APJ-80V	800×510	410	40-175	75	3088×1998×1982	7.5
APJ-96V	930×580	460	60-175	90	3342×2022×2040	12
APJ-106V	1060×700	560	70-200	110	3760×2022×2460	19
APJ-116V	1150×800	650	70-200	132	4030×2250×2690	22.5
APJ-110V	1100×850	680	70-200	160	4298×2334×2740	25.8
APJ-120V	1200×870	700	100-250	160	4400×2550×3090	28
APJ-125V	1250×950	760	100-250	160	4690×2776×3250	38
APJ-140V	1400×1070	850	125-250	200	4818×2902×3412	47.2
APJ-145V	1400×1100	880	125-275	220	5300×3150×3890	54.5
APJ-160V	1600×1200	960	150-300	250	5424×3304×3923	71.3
APJ-200V	2000×1500	1200	175-300	400	6732×4020×4370	121.5

Model	Cavity	Power (kW)	Weight (t)	Drive shaft speed (rmp)	Moving cone speed (rmp)	Overall L×W×H (mm)
APC-100M	B (Standard)	90	6.5	750-1200		218021101875
APC-100M	D (Short-head)	90	6.5	750-1200		218021101875
APC-200M	B (Standard)	160	14.8	780	341	252023502210
APC-200M	D (Short-head)	160	14.8	1018	445	252023502210
APC-300M	B (Standard)	220	20	800	328	285025002390
APC-300M	D (Short-head)	220	20	1050	430	285025002390
APC-400M	B (Standard)	315	29	760	315	330030802400
APC-400M	D (Short-head)	315	29	904	374	330030802400
APC-500M	B (Standard)	400	38	755	295	330030802400
APC-500M	D (Short-head)	400	38	880	344	330030802400
APC-800M	B (Standard)	630	64.5	750-1000		400036003310
APC-800M	D (Short-head)	630	64.5	750-1000		400036003310

Model	Rotor diameter * length (mm)	Inlet Size (mm)	Max Feeding Size (Max, mm)	Capacity (t/h)	Power (kW)	Weight (t)	Dimension L×W×H (mm)
APF1007	Φ1000*700	400*730	250	30-50	55	9.5	2400×1550×2660
APF1010	Φ1000*1050	400*1080	300	40-80	75	12.2	2400×2250×2620
APF1210	Φ1250*1050	450*1060	300	70-120	110	15	2690×2338×2890
APF1214	Φ1250*1400	450*1430	300	90-180	132	18.6	2690×2688×2890
APF1315	Φ1320*1500	550*1530	400	150-250	250	19.5	3096×3273×2667
APF1320	Φ1320*2000	610*2030	500	160-350	2*200	28	3096×3560×3185
APF1520	Φ1500*2000	830*2040	700	300-500	2*250	43	3890×3564×3220

Parameter	APF-1210H	APF-1313H	APF-1415H	APF-1620H
Series	Coarse crushing	Coarse crushing	Coarse crushing	Coarse Crushing
Inlet Size (W*H)	1020*1080	1320*1225	1540*1320	2040*1634
Max Feeding Size (mm)	800	900	1000	1300
Rotor Diameter (mm)	1200	1300	1400	1600
Rotor Speed (mm)	1000	1300	1500	2000
Power (kw)	110/132/160	132/160/200	160/200/250	250/315/2*200
Material recycling (r/min)	490-580	460-520	390-495	360-400
coarse crushing (r/min)	555-620	520-585	495-550	400-500
Medium crushing (r/min)	620-695	585-660	550-615
Rotor Weight (kg)		6340	8165	15980
Total Weight (kg)	12800	17800	21815	40500
Dimension (L)	2698	2972	2985	3480
Dimension (W)	2126	2560	2790	3600
Dimension (H)	3030	3300	3375	4200
Parameter	APF-1007H	APF-1110H	APF-1213H	APF-1315H	APF-1520H
Series	Medium crushing	Medium crushing	Medium crushing	Medium crushing	Medium crushing
Inlet Size (W*H)	750*890	1020*820	1320*880	1540*930	2040*995
Max Feeding Size (mm)	500	600	600	600	700
Rotor Diameter (mm)	1000	1100	1200	1300	1500
Rotor Speed (mm)	700	1000	1300	1500	2000
Power (kw)	55/75/90	110/132/160	132/160/200	160/200/250	250/2160/2200
Material recycling (r/min)	525-660	460-620	435-585	410-520	370-450
coarse crushing (r/min)	660-705	620-695	585-615	525-585	450-510
Medium crushing (r/min)	705-940	695-830	645-780	585-700	510-610
Rotor Weight (kg)		3065	4850	6370	10400
Total Weight (kg)	7240	9250	12780	16130	27100
Dimension (L)	2596	2626	2809	2875	3391
Dimension (W)	1804	2160	2529	2750	3400
Dimension (H)	1857	1945	2091	2221	2513

Parameter	Sub-Parameter	APV-7611	APV-8518	APV-9526	APV-1140
Throughput	Whole center feeding	60-90	100-130	150-190	225-260
Throughput	Waterfall and central feeding	120-180	200-260	300-380	450-520
Max Feeding Size (mm)	Soft material	35	40	45	50
Max Feeding Size (mm)	Hard material	30	35	40	45
Speed (r/min)		1700-1890	1520-1690	1360-1510	1180-1310
Power		2*55	2*90	2*132	2*200
Dimension L×W×H (mm)		370021502100	414022802425	456024472778	500027003300
Weight (T)		11.8	14.5	17.8	25.6
Thin oil Lubrication station	Dual oil pump power	2x0.25kw
	Safety protection	Dual oil pump complementary fuel supply; Automatic shutdown without oil return; Water/air cooling for cooling; Low temperature automatic heating
	Heating power of fuel tank	2 kW
	Dimension L×W×H (mm)	8205201270
Parameter	Sub-Parameter	APV-7615X	APV-8522X	APV-9532X	APV-1145X	APV-1150X	APV-1263X
Throughput	Whole center feeding	70-140	120-200	180-280	250-360	344-368	454-486
Throughput	Waterfall and central feeding	150-280	240-380	350-540	500-640	550-745	650-850
Max Feeding Size (mm)	Soft material	35	40	45	50	55	60
Max Feeding Size (mm)	Hard material	30	35	40	45	45	55
Speed (r/min)		1710-1900	1530-1700	1380-1550	1200-1390	1000-1300	900-1200
Power		2*75	2*110	2*160	2*220	2*250	2*315
Dimension L×W×H (mm)		410023302300	414025002700	456026002900	510027903320	550027503950	570029804190
Weight (T)		12.1	14.8	18.6	27.5	29	34.5
Thin oil Lubrication station	Dual oil pump power	2x0.31kW
	Safety protection	Dual oil pump complementary fuel supply; Automatic shutdown without oil return; Water/air cooling for cooling; Low temperature automatic heating
	Heating power of fuel tank	2 kW
	Dimension L×W×H (mm)	8205201270

Stationary Crushing Plant Projects

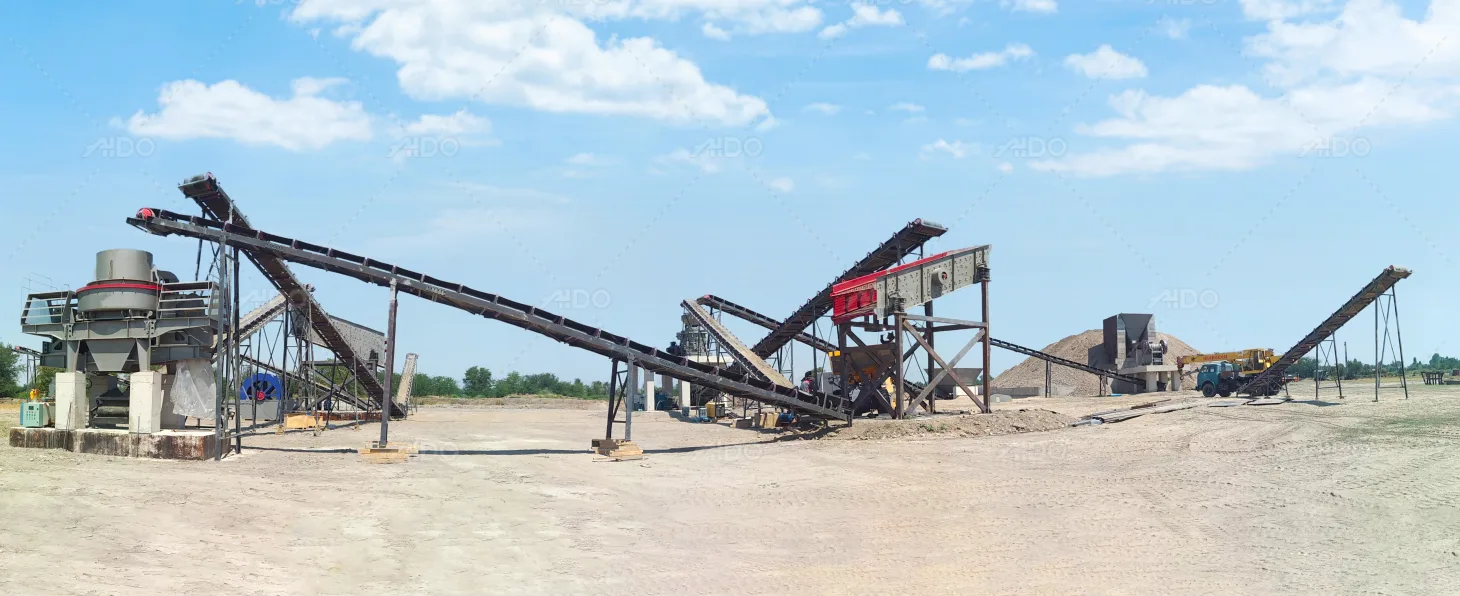

stationary crushing and sand making plant

Stationary Crusher Plant in Uzbekistan

Capacity: 200TPH

Application: Manufactured Sand Production

A fixed crushing and sand-making line in Uzbekistan processes river stone into 0–5 mm manufactured sand using VSI crushing and shaping technology for construction and road projects.

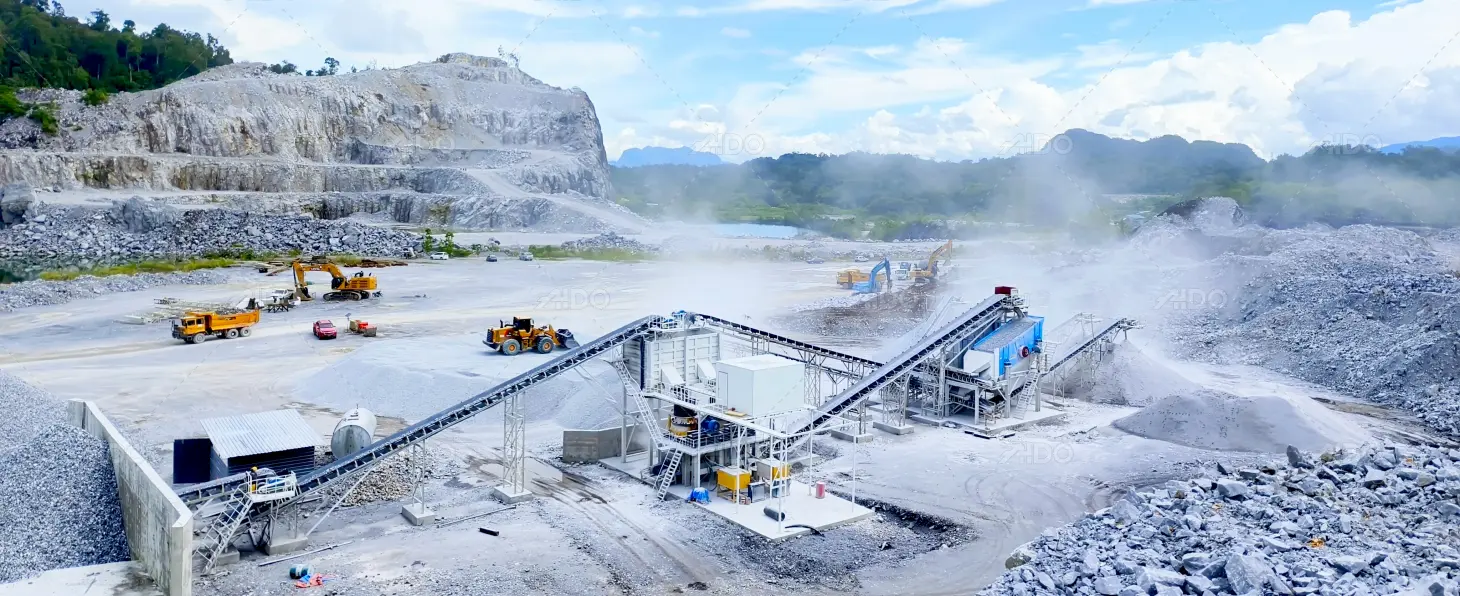

Stationary Crushing Plant in Malaysia

Capacity: 350TPH

Application: Aggregate Production

A 350 TPH fixed crushing plant in Malaysia processes granite into 0–7, 7–13, 13–19, and 19–30 mm aggregates using a single-cylinder cone crusher for high-capacity and stable production.

Key Features of Stationary Crushing Plant

High Production Capacity

Supports large-scale aggregate production with capacities ranging from 60 TPH to 1,000 TPH and beyond.

Customized Configuration

Combines jaw, cone, or impact crushers with screening and conveying systems to match specific production requirements.

Stable Operation

Designed for continuous, long-term operation to support consistent output in demanding production environments.

Multiple Aggregate Sizes

Uses multi-stage crushing and screening to produce aggregates in different sizes for various construction applications.

Optimized Plant Layout

Allows flexible equipment arrangement based on site dimensions, material flow, and production targets.

Easy Maintenance

Provides accessible equipment layouts to simplify routine inspections, wear part replacement, and maintenance tasks.

Comprehensive Service & Support

Spare Parts Supply

A comprehensive spare parts inventory covers crusher jaw plates, cone crusher liners, blow bars, vibrating screen meshes, conveyor belts, bearings, and other essential components.

Expert Technical Support

Our experienced technical team supports crushing plant design, installation, troubleshooting, and maintenance, with online and on-site assistance.

24/7 After-Sales Service

Our after-sales team is available 24/7 to answer questions and provide online or on-site support throughout your equipment’s service life.

Find the Right Crushing Plant

Looking for a suitable crushing plant for your project? Tell us your required production capacity, application, and site conditions. Our team will help you explore suitable options and find the right solution for your needs.
