Wheel Type Mobile Crusher Plant
Applications:Aggregate Production | Mining | Road Construction | Construction Waste Recycling
Types：2 in 1 | 3 in 1 | 4 in 1

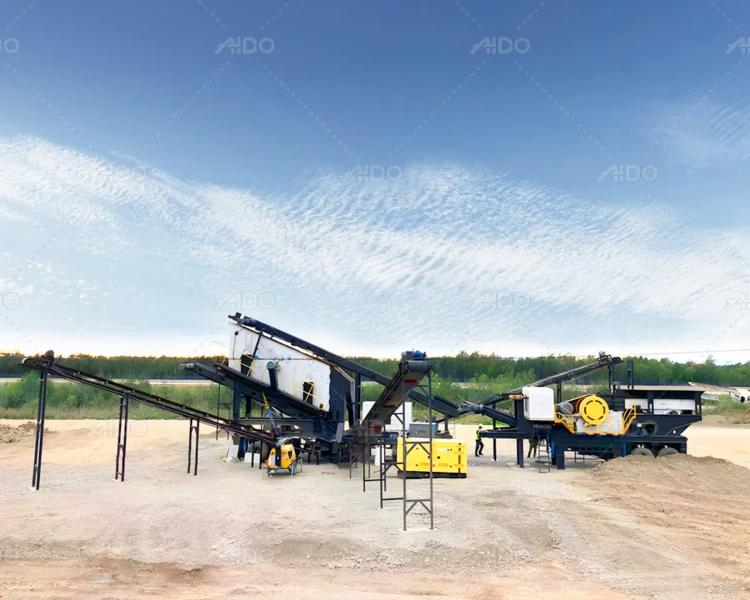

APY Series Wheel-mounted Mobile Crusher Plants

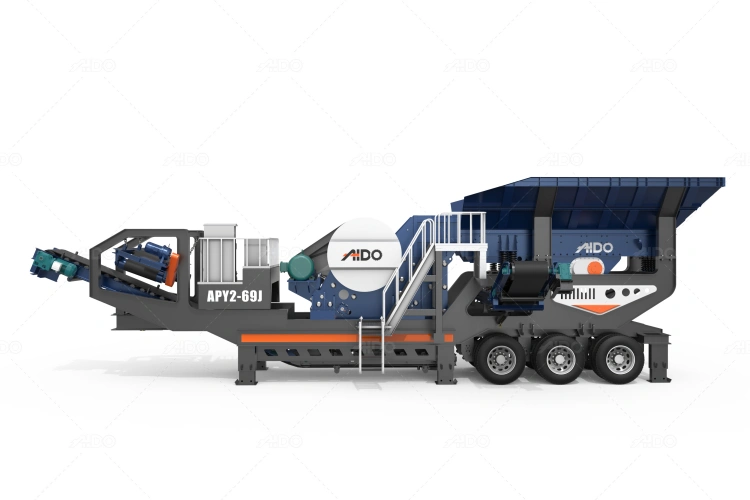

APY2-J Mobile Jaw Crusher
APY2-J 2 in 1 mobile jaw crusher is suitable for primary crushing of hard rocks, such as granite, basalt, and river pebbles
Capacity: 100-300t/h

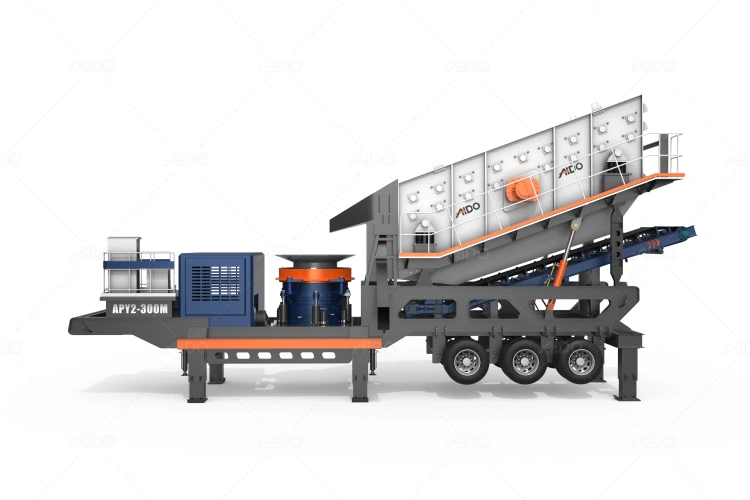

APY2-C Mobile Cone Crusher
APY2-C 2 in 1 mobile cone crusher is Suitable for secondary and fine crushing of hard rocks in quarrying and aggregate production projects.
Capacity: 100-300t/h

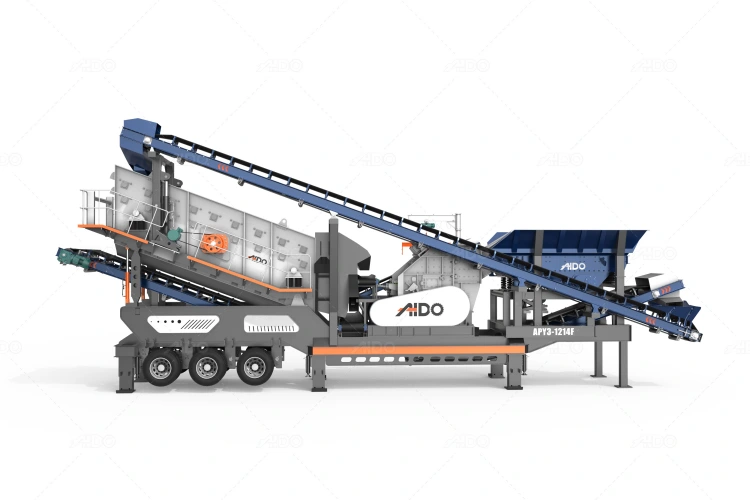

APY3-F Mobile Impact Crusher
APY3-F 3 in 1 mobile impact crusher is suitable for crushing soft to medium-hard materials, such as limestone and construction waste.
Capacity: 60-300t/h
APY4-S Mobile Crushing and Screening Plant
APY4-S 4 in 1 mobile crusher is suitable for crushing and screening limestone, concrete waste, and other materials into multiple aggregate sizes for small to medium-sized projects.
Capacity: 60-300t/h
Technical Parameters
| Capacity / Hour | Type | Model | Configuration | Main Crusher | Raw Material Type |
|---|---|---|---|---|---|
| 60-80TPH | Wheeled Type | APY4-57110-S4/S3 | Feeder + Jaw Crusher + Cone Crusher + Vibrating Screen | PE57 | Hard Rock / Soft Rock |
| APY3-1110F-S4/S3 | Feeder + Impact Crusher + Vibrating Screen | NP1110 | Soft Rock | ||
| 100-120TPH | Wheeled Type | APY2-96 | Feeder + Jaw Crusher | C96 | Hard Rock / Soft Rock |
| APY4-69132-S4/S3 | Feeder + Jaw Crusher + Cone Crusher + Vibrating Screen | PE69 | Hard Rock / Soft Rock | ||
| APY2-1213 | Feeder + Impact Crusher | NP1213 | Soft Rock | ||
| APY2-1213-S4/S3 | Impact Crusher + Vibrating Screen | NP1213 | Soft Rock | ||
| APY2-430H-S4/S3 | Single-Cylinder Cone Crusher + Vibrating Screen | 430H | Hard Rock | ||
| APY2-HP200-S4/S3 | Cone Crusher+Vibrating Screen | HP200 | Hard Rock | ||
| 150-180TPH | Wheeled Type | APY2-106 | Feeder + Jaw Crusher | C106 | Hard Rock / Soft Rock |
| APY3-1213F-S4/S3 | Feeder + Impact Crusher + Vibrating Screen | NP1213 | Soft Rock | ||
| 1214(NP1213) | Wheel-Mounted Impact Crushing & Screening Plant | NP1213 | Soft Rock | ||
| 200TPH | Wheeled Type | APY2-440H-S4/S3 | Single-Cylinder Cone Crusher + Vibrating Screen | 440H | Hard Rock |
| APY2-1315 | Feeder + Impact Crusher | NP1315 | Soft Rock | ||
| APY3-1315F-S4/S3 | Feeder + Impact Crusher + Vibrating Screen | NP1315 | Soft Rock | ||
| 1142 + PE7510 Standard / 1142 + C116 European | C116 | Hard Rock | |||
| HP300 | Wheel-Mounted Cone Crushing & Screening Plant | HP300 | Hard Rock | ||
| APY3-1315F-S4/S3 | NP1315 | Soft Rock | |||
| 300TPH | Wheeled Type | C110/120 | Wheeled Jaw Crusher Plant | C120 | Hard Rock / Soft Rock |
| HP400 | Wheel-Mounted Cone Crushing & Screening Plant | HP400 | Hard Rock | ||
| NP1315 | Wheel-Mounted Impact Crushing & Screening Plant | NP1315 | Soft Rock |
Wheel Type Mobile Crusher Plant Projects

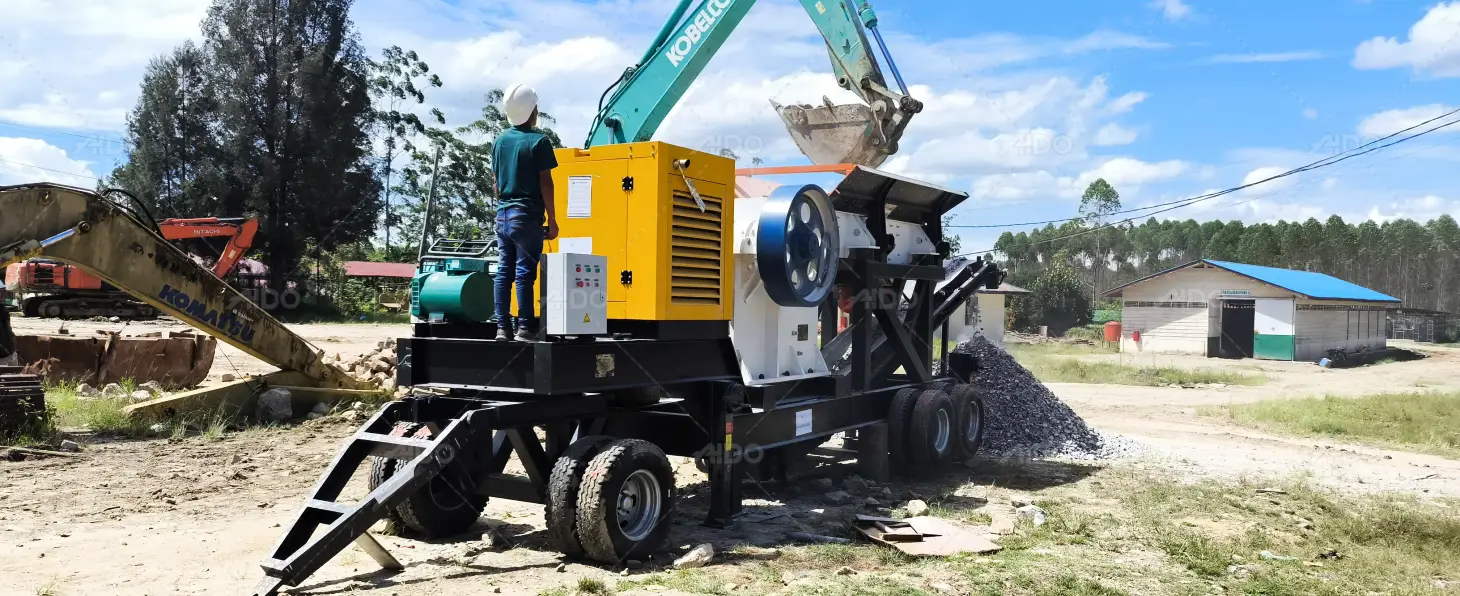

Small Mobile Crusher Plant in Indonesia
Capacity: 30TPH
Application: Road Base Aggregate Production
The small portable jaw crushing plant in Medan, processes andesite and granite with a feed size of up to 340 mm into 10–20 mm aggregates, offering flexible on-site production for road base projects.

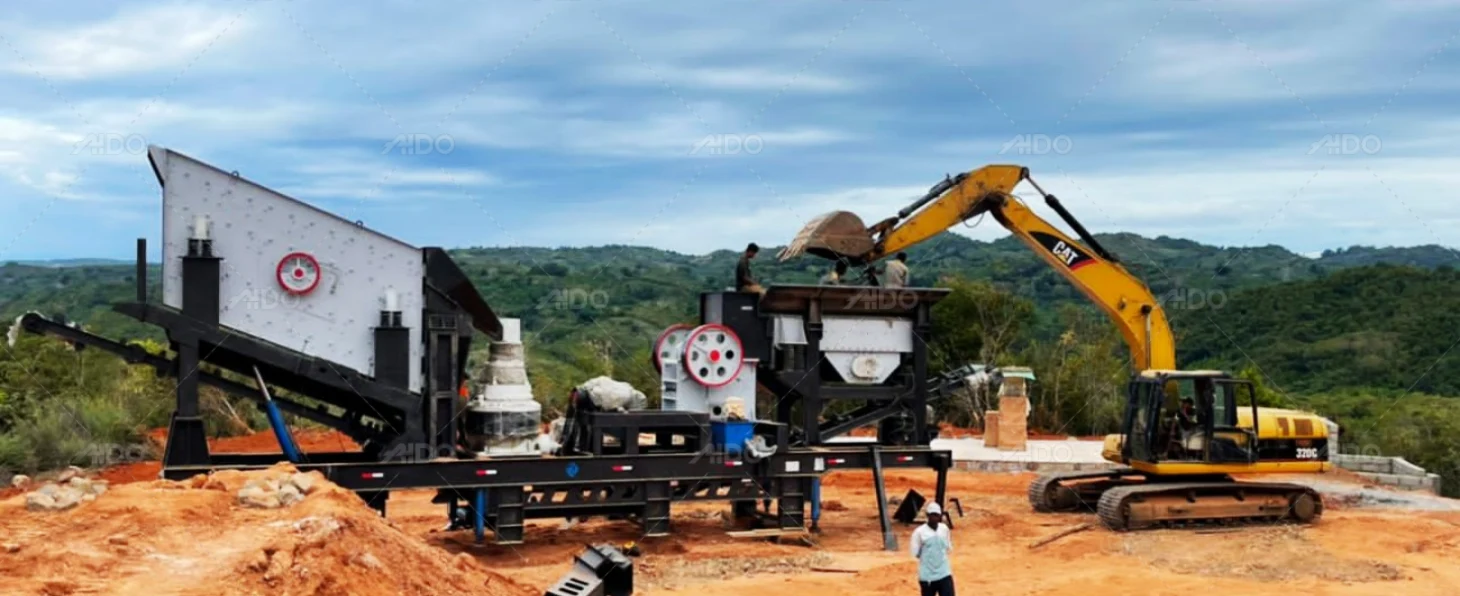

4 in 1 Mobile Crushing Plant in Madagascar
Capacity: 250TPH
Application: Road Construction Aggregate Production
The 250 TPH limestone crushing plant in Madagascar is designed to process raw limestone into various sizes of crushed aggregates. The plant provides a consistent supply of aggregate materials to meet the demands of local infrastructure development.
Key Features of Wheeled Mobile Crushers
Integrated Design
Combines feeding, crushing, screening, and conveying equipment in one mobile plant for streamlined on-site material processing.
Compact Structure
Integrates multiple processing stages into a compact layout, helping reduce equipment footprint and simplify site arrangement.
Flexible Mobility
The wheeled chassis allows convenient transportation between suitable job sites, making it ideal for projects with changing locations.
Multi-Stage Processing
Coordinates crushing and screening operations to produce multiple aggregate sizes for different construction and infrastructure requirements.
Wide Applications
Suitable for processing limestone, concrete waste, and other materials in quarrying, road construction, and recycling projects.
Quick Deployment
The integrated configuration reduces on-site installation work, helping contractors start production faster and improve project flexibility.
Comprehensive Service & Support
Spare Parts Supply
A comprehensive spare parts inventory covers crusher jaw plates, cone crusher liners, blow bars, vibrating screen meshes, conveyor belts, bearings, and other essential components.
Expert Technical Support
Our experienced technical team supports crushing plant design, installation, troubleshooting, and maintenance, with online and on-site assistance.
24/7 After-Sales Service
Our after-sales team is available 24/7 to answer questions and provide online or on-site support throughout your equipment’s service life.
Find the Right Crushing Plant
Looking for a suitable crushing plant for your project? Tell us your required production capacity, application, and site conditions. Our team will help you explore suitable options and find the right solution for your needs.
