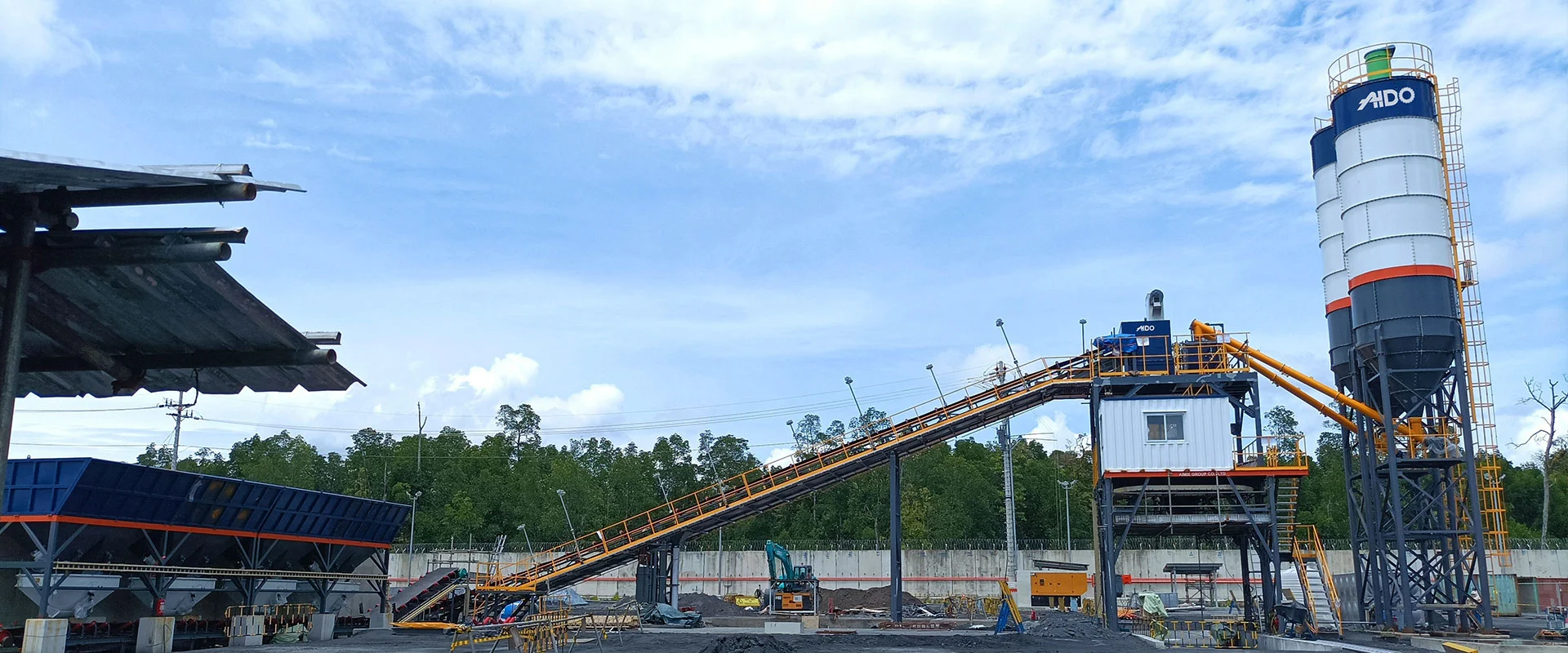

Stationary Concrete Plant
Continuous, High-Volume Concrete Production
Production Capacity: 60-360m³/h
Popular AJ Stationary Concrete Batching Plant Models

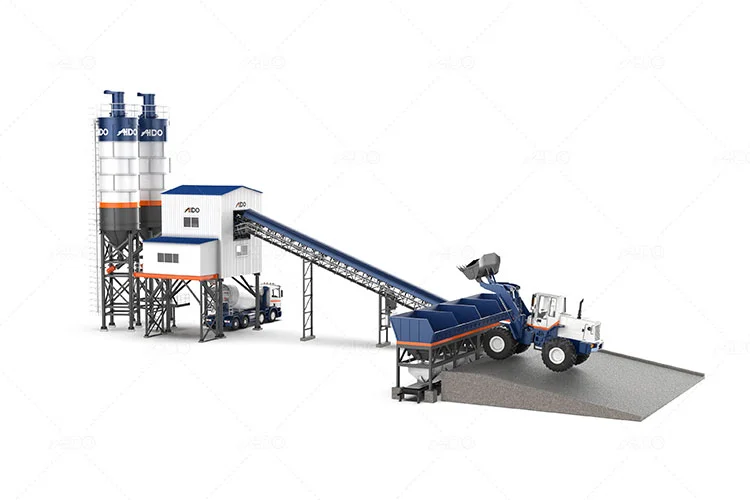

AJ90
Theoretical Production Capacity: 90 m³/h
Medium to large projects, road and bridge construction

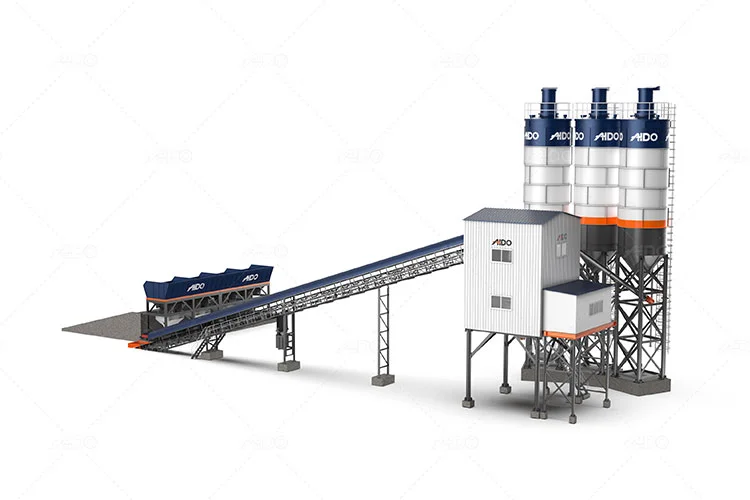

AJ120
Theoretical Production Capacity: 120 m³/h
Large projects, high-rise buildings, infrastructure

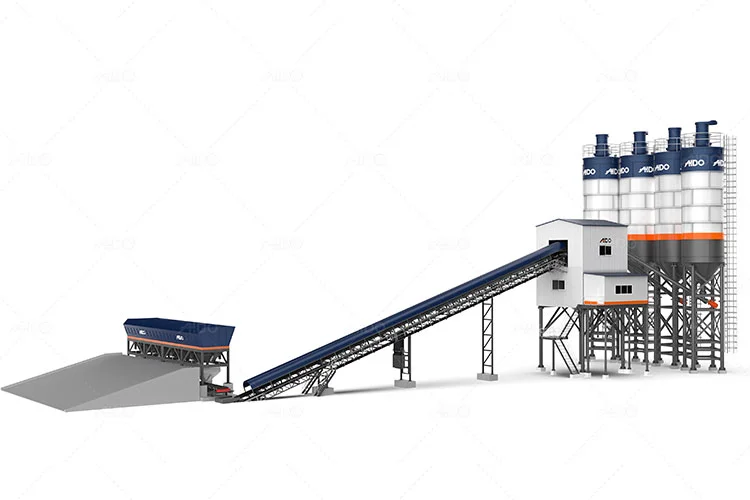

AJ180
Theoretical Production Capacity: 180 m³/h
Mega-projects, urban development, commercial concrete supply
AJ240
Theoretical Production Capacity: 240 m³/h
Extra-large infrastructure projects, mega-construction, high-volume commercial concrete supply
Technical Parameters
| Model | AJ90 | AJ120 | AJ180 | AJ240 | AJ270 |
|---|---|---|---|---|---|
| Theoretical productivity (m³/h) | 90 | 120 | 180 | 240 | 270 |
| Mixer discharge volume (L) | 1500 | 2000 | 3000 | 4000 | 4500 |
| Mixer feeding volume (L) | 2250 | 3000 | 4500 | 6000 | 6750 |
| Mixer power (kw) | 30×2 | 37×2 | 55×2 | 75×2 | 75×2 |
| Discharge height (m) | 4.1 | 4.2 | 4.2 | 4.2 | 4.2 |
| Aggregate bin configuration (number × single bin volume, m³) | 4×15 | 4×20 | 4×25 | 4×30 | 4×30 |
| Cycle time (s) | 60 | 60 | 60 | 60 | 60 |
| Maximum aggregate particle size (mm) | 80/100 | 80/100 | 80/100 | 80/100 | 80/100 |
| Cement silo (optional) | 3×100 | 4×100 | 4×100 | 4×100 | 4×100 |
| Aggregate weighing system | ±2% | ±2% | ±2% | ±2% | ±2% |
| Powder weighing system | ±1% | ±1% | ±1% | ±1% | ±1% |
| Water weighing system | ±1% | ±1% | ±1% | ±1% | ±1% |
| Additive weighing system | ±1% | ±1% | ±1% | ±1% | ±1% |
| Installed power (kw) | ≈160 | ≈220 | ≈290 | ≈340 | ≈340 |
| Control mode | Fully automated computer (PC) control | ||||
| Power supply | 220V/415V/440V/380V, 50Hz/60Hz, three-phase | ||||
Stationary Concrete Batching Plant Projects
Stationary Concrete Plant for Power Plant Construction in Indonesia
Equipment: AJ90
Application: Power Plant Construction
The power plant project in Indonesia, required a reliable supply of concrete under challenging site conditions. The AJ90 stationary batching plant ensures consistent on-site concrete production to support efficient construction.
Stationary Concrete Batching Plant in Kazakhstan
Equipment: AJ180
Application: Commercial Concrete Production
The AJ180 stationary concrete batching plant provides high-capacity, reliable concrete production to support construction projects in Kazakhstan, meeting the demand for a consistent concrete supply.
Key Features of Stationary Concrete Batching Plants
High Production Capacity
Available in AJ90–AJ360 models for large-scale infrastructure projects and commercial ready-mix plants.
Efficient & Uniform Mixing
The twin-shaft forced mixer delivers uniform mixing for different concrete mix designs.
Integrated Storage & Accurate Batching
Large-capacity aggregate bins and powder silos support continuous production. Integrated weighing systems maintain batching accuracy with a measurement error of ≤ ±1%.
Automated Control & Monitoring
Computerized controls monitor material levels, batching ratios, and equipment status in real time, with data tracking and fault warnings.
Robust Structure & Easy Maintenance
A stable foundation and modular design simplify maintenance, with core components lasting up to 30% longer than mobile or skid-mounted types.
Flexible Layout & Environmental Options
Ideal for permanent production sites near transport hubs or mining areas. Optional enclosures help meet environmental protection requirements in urban and industrial areas.
Comprehensive Service & Support
Spare Parts Supply
A comprehensive spare parts inventory covers mixer wear liners, batching belt motors, valves, thermal overload relays, and other essential components.
Expert Technical Support
Our experienced technical team supports concrete batching plant design, installation, troubleshooting, and maintenance, with online and on-site assistance.
24/7 After-Sales Service
Our after-sales team is available 24/7 to answer questions and provide online or on-site support throughout your equipment’s service life.
Find the Right Concrete Batching Plant
Looking for a suitable concrete batching plant for your project? Tell us your required production capacity, application, and site conditions. Our team will help you explore suitable options and find the right solution for your needs.
