Concrete Trailer Pump
Reliable Pipeline Pumping for Diverse Construction Projects
Power Options: Diesel & Electric
Types of Concrete Trailer Pumps

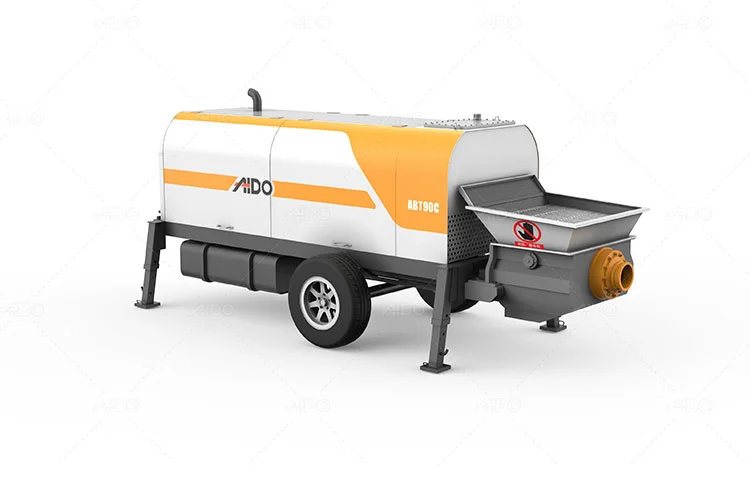

Diesel Powered
Model: ABT30C, ABT40C, ABT60C, ABT80C, ABT90C
Suitable for construction sites with limited or unreliable electricity supply, including remote projects.

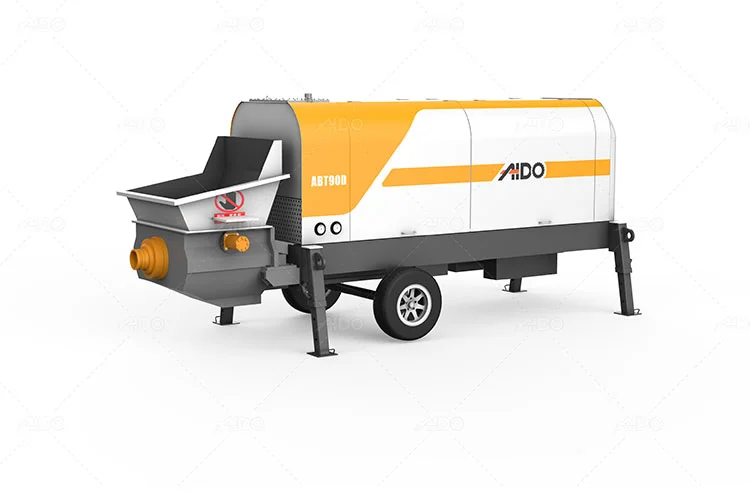

Electric Powered
Model: ABT30D, ABT40D, ABT60D, ABT80D, ABT90D
Suitable for sites with a stable power supply, offering an alternative to diesel operation.
Technical Parameters
| Items | Key Parameters | Units | ABT40C | ABT60C | ABT80C |
|---|---|---|---|---|---|
| Whole performance of machine | Max. theo. concrete output(L./H) | m³/h | 40/26 | 67/45 | 84/45 |
| Max.concrete pumping pressure(H./L.) | MPa | 10/8 | 13/7 | 16/7 | |
| Distribution valve type | S Valve | S Valve | S Valve | ||
| Concrete cylinder diameter×stroke | mm | Φ180×1200 | Φ200×1650 | Φ200×1800 | |
| Hopper capacity x feeding height | L/mm | 400/1100 | 800/1400 | 800/1400 | |
| Outlet diameter | mm | Φ150 | Φ180 | Φ180 | |
| Power system | Diesel engine model | Weichai | Weichai | Weichai | |
| Diesel engineering power | KW | 82 | 129 | 176 | |
| Rotate speed | r/min | 2200 | 2200 | 2200 | |
| Hydraulic system | Circuit type | Open circuit | Open circuit | Open circuit | |
| Pumping system pressure | MPa | 32 | 32 | 32 | |
| Mixing system pressure | MPa | 10 | 10 | 10 | |
| Capacity of oil tank | L | 370 | 560 | 560 | |
| Other parameters | Max. Theoretical Vertical/Horizontal Conveying Distance | m | 120/500 | 180/1000 | 260/1200 |
| Max. aggregate diameter | mm | Slick/scree:40 | Slick/scree:40 | Slick/scree:40 | |
| Inside diameter of delivering pipe | mm | Φ125 | Φ125 | Φ125 | |
| Dimensions：length×width×height | mm | 5000x1850x1700 | 5800x2000x1750 | 6300x2100x2350 | |
| Total weight | kg | 4500 | 6500 | 6900 |
| Items | Key Parameters | Units | ABT40D | ABT60D | ABT80D |
|---|---|---|---|---|---|
| Whole performance of machine | Max. theo. concrete output(L./H) | M3/h | 40/26 | 60/36 | 84/46 |
| Max.concrete pumping pressure(H./L.) | MPa | 10/8 | 13/7 | 16/9 | |
| Distribution valve type | S Valve | S Valve | S Valve | ||
| Concrete cylinder diameter×stroke | mm | Φ180×1300 | Φ200×1650 | Φ200×1800 | |
| Hopper capacity x feeding height | L/mm | 400/1250 | 800/1400 | 800/1400 | |
| Outlet diameter | mm | Φ150 | Φ180 | Φ180 | |
| Electrical engineering power | KW | 45 | 90 | 110 | |
| Rotate speed | r/min | 1480 | 1480 | 1480 | |
| Hydraulic system | Circuit type | Open circuit | Open circuit | Open circuit | |
| Pumping system pressure | MPa | 28 | 28 | 32 | |
| Mixing system pressure | MPa | 10 | 10 | 10 | |
| Capacity of oil tank | L | 370 | 560 | 560 | |
| Other parameters | Max. Theoretical Vertical/Horizontal Conveying Distance | m | 120/500 | 160/800 | 200/1000 |
| Max. aggregate diameter | mm | Slick/scree:40 | Slick/scree:40 | Slick/scree:40 | |
| Inside diameter of delivering pipe | mm | Φ125 | Φ125 | Φ125 | |
| Dimensions：length×width×height | mm | 4500x1750x1600 | 5500x2000x1750 | 5800x2100x2350 | |
| Total weight | kg | 3200 | 6000 | 6300 |
Trailer Concrete Pump Projects
Diesel Trailer Concrete Pump for Building Construction in Russia
Equipment: ABT80C
The construction project required a reliable solution for delivering concrete to pouring locations across the site. The ABT80C diesel trailer concrete pump provided efficient concrete pumping and flexible on-site operation, helping streamline concrete placement and keep construction work progressing smoothly.

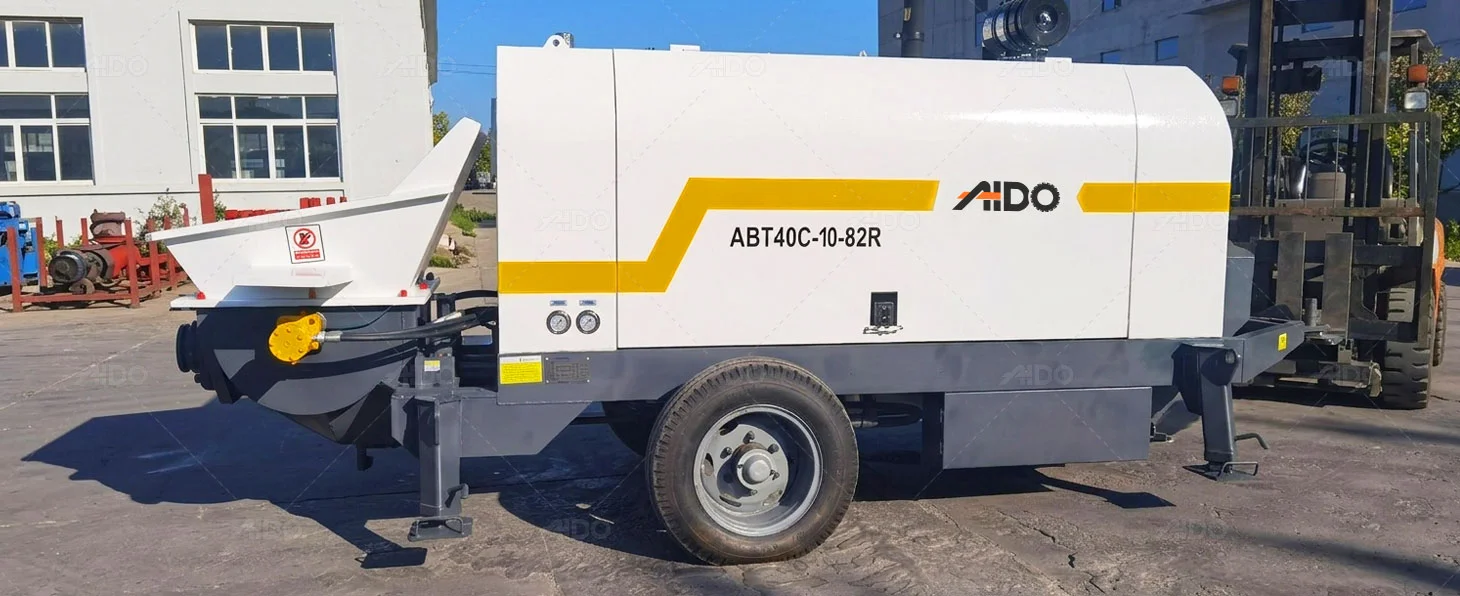

Diesel Trailer Concrete Pump for Construction in Indonesia
Equipment: ABT40C
The customer needed a practical solution for concrete placement at a construction site in Indonesia. The ABT40C diesel trailer concrete pump delivers concrete directly to pouring locations, providing flexible operation and reliable performance to support daily construction activities.
Key Features of Concrete Trailer Pumps
High-Pressure, Long-Distance Concrete Delivery
With pumping pressure of up to 31.5 MPa, the ABT Series supports demanding concrete delivery applications. Depending on the model and site conditions, delivery distances can reach up to 280 m vertically and 1,200 m horizontally.
Stable Hydraulic System for Reliable Pumping
The constant-power piston pump and open hydraulic circuit help reduce reversing impact and support stable operation during continuous concrete delivery.
Wear-Resistant Components for Longer Service Life
Selected hydraulic components and wear-resistant alloy parts are designed to withstand demanding working conditions, helping reduce component wear and maintenance requirements.
Intelligent Control for Efficient Operation
The PLC control system and remote operation options, depending on configuration, help operators manage pumping speed and pressure for controlled, consistent concrete delivery.
Easy Maintenance and Flexible Configuration
The S-valve system features a practical structure for routine inspection and maintenance. Compatible models can also be fitted with a tracked chassis for improved relocation on suitable job sites.
Versatile Applications Beyond Concrete Pumping
With compatible spraying equipment, the pump can be configured for spraying concrete, mortar, and refractory materials, as well as suitable slope protection and mine backfilling applications.
Comprehensive Service & Support
Spare Parts Supply
Our concrete pump spare parts inventory covers essential components, including hydraulic fittings, delivery pipes, spectacle wear plates, cutting rings, and other replacement parts.
Expert Technical Support
Our experienced technical team provides support for concrete pump installation, commissioning, troubleshooting, and maintenance, with online and on-site assistance.
24/7 After-Sales Service
Our after-sales team is available 24/7 to respond to your inquiries and provide online or on-site support, helping maintain your concrete pump’s performance and service life
Find the Right Concrete Pump
Tell us your project requirements, concrete delivery distance, pumping height, and site conditions. Our team will help you select the right concrete pump for your application.
