Concrete Mixer Pump
Mixing and Pumping in One Compact Machine
Power Options: Diesel & Electric
Types of Concrete Mixer Pumps

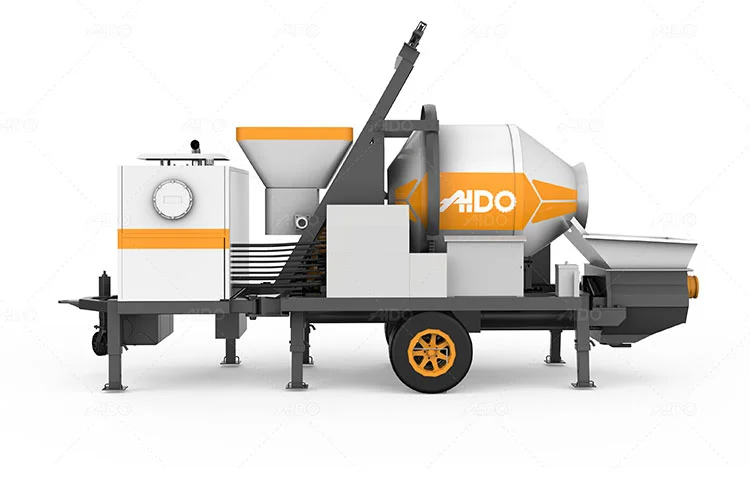

Diesel Powered
Model: ABJW30C, ABJZ30C, ABJZ40C
Ideal for remote construction sites without reliable electricity, combining concrete mixing and pumping in one machine.

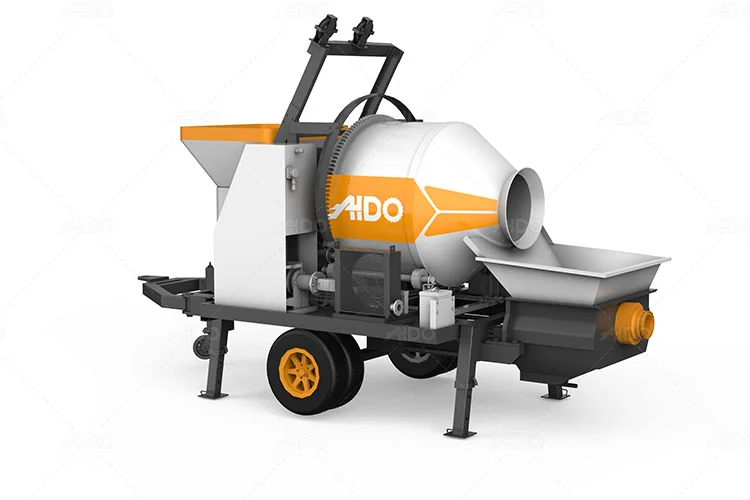

Electric Powered
Model: ABJZ30D, ABJZ40D
Suitable for sites with a stable power supply, offering low-noise operation and zero on-site exhaust emissions.
Technical Parameters
| Items | Key Parameters | Units | ABJZ30C | ABJZ30D | ABJZ40C | ABJZ40D |
|---|---|---|---|---|---|---|
| Whole performance of machine | Max. theo. concrete output(L./H) | m³/h | 30 | 30 | 40 | 40 |
| Mixer rated feed capacity | m3 | 0.56 | 0.56 | 0.56 | 0.56 | |
| Mixer rated discharge capacity | m3 | 0.35 | 0.35 | 0.45 | 0.45 | |
| Max.concrete pumping pressure(H./L.) | MPa | 10 | 10 | 10 | 10 | |
| Distribution valve type | S Valve | S Valve | S Valve | S Valve | ||
| Hopper capacity | L | 400 | 400 | 400 | 400 | |
| Power system | Diesel engine model | Weichai | ||||
| Electrical engineering power | KW | 37 | 37 | 82 | 45 | |
| Rotate speed | r/min | 1480 | 1480 | 2200 | 1480 | |
| Hydraulic system | Circuit type | Open circuit | Open circuit | Open circuit | Open circuit | |
| Pumping system pressure | MPa | 26 | 26 | 32 | 26 | |
| Capacity of oil tank | L | 260 | 260 | 350 | 370 | |
Concrete Mixer Pump Projects
Diesel Concrete Mixer Pump for Spraying Operations in the Philippines
Equipment: ABJZ40C
Application: Concrete Spraying
To meet the project’s spraying requirements, the ABJZ40C diesel concrete mixer pump was modified for spraying operations. After arriving on schedule, the equipment was installed and commissioned with guidance from a technical engineer, helping improve work efficiency at the construction site.
Key Features of Concrete Mixer Pumps
Integrated Mixing and Pumping
Combines concrete preparation and pipeline delivery in one machine, reducing the need for separate equipment, material handling, and installation space.
Compact Design for Flexible Site Deployment
The integrated structure supports convenient transportation and relocation, making the machines suitable for residential construction, rural projects, and sites with limited working space.
Practical Maintenance and Cost Efficiency
Combining mixing and pumping reduces the number of separate machines required. The drum mixer’s simple structure also helps simplify routine maintenance.
Reliable Concrete Delivery
The pumping system delivers mixed concrete through pipelines to designated pouring points, helping improve placement efficiency in foundations, slabs, and other concrete structures.
Reduced Labor and Material Handling
Combining mixing and pumping operations reduces the need for separate equipment and repeated material transfers, helping streamline on-site workflows and labor allocation.
Adaptable to Different Construction Projects
Available configurations and capacities can accommodate different concrete output requirements, making concrete mixer pumps practical for small- to medium-scale construction and remote job sites.
Comprehensive Service & Support
Spare Parts Supply
Our concrete pump spare parts inventory covers essential components, including hydraulic fittings, delivery pipes, spectacle wear plates, cutting rings, and other replacement parts.
Expert Technical Support
Our experienced technical team provides support for concrete pump installation, commissioning, troubleshooting, and maintenance, with online and on-site assistance.
24/7 After-Sales Service
Our after-sales team is available 24/7 to respond to your inquiries and provide online or on-site support, helping maintain your concrete pump’s performance and service life
Find the Right Concrete Pump
Tell us your project requirements, concrete delivery distance, pumping height, and site conditions. Our team will help you select the right concrete pump for your application.
